Push Button Switch OFF-(ON) 14*14 Momentary

this is momentary Push Button Switch OFF-(ON) 14*14 Momentary SPST

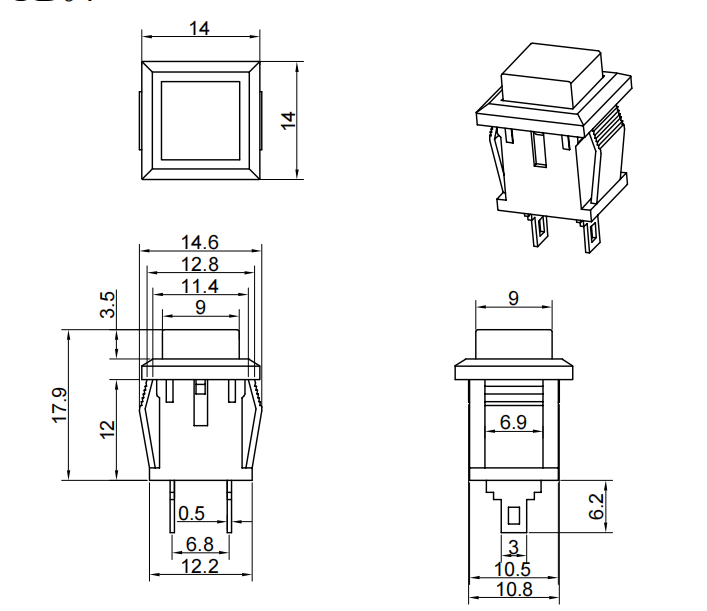

The PB04 series is Square Push Button Switch OFF-(ON) 14*14mm Reset Momentary 3A/125VAC SPST with 2 pins, it is available in latching and momentary function, the button color is available in black, red, green ,yellow.


Rating:3A 125 VAC/ 1.0A 250V AC

Contact resistance: 50mΩ(max)

Insulation resistance: DC500V 100MΩ(min)

Dielectric strength: 1000VAC for 1 minute;

Total travel:2.5±0.4mm

Operating force:250±100gf

Operating life: 10,000 cycles


1. Multiple button color options

2. Suitable applications for keyboards, security systems, about 5 colors.

3. Panel mount
