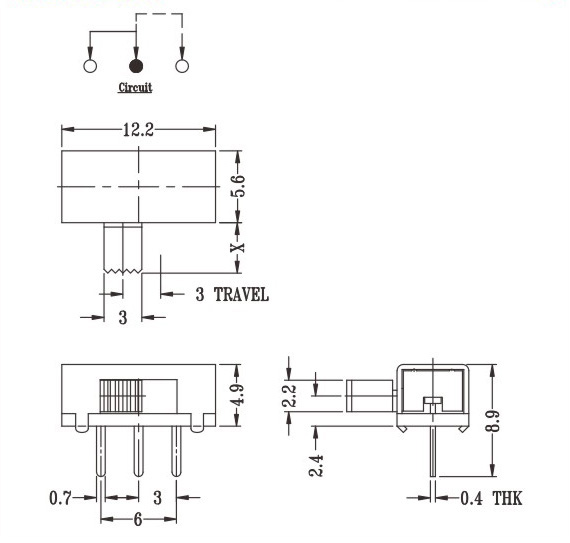

3 Pin 2 Position Right Angle Slide Switch

3 Pin 2 Position Right Angle Slide Switch


3 Pin 2 Position Right Angle Slide Switch is a kind of structure is relatively simple switch, the interior of sliding switch has a slider, sliding switch can be used at power supply cut off with put on, also can be used at recorder conversion guard, widely used in all kinds of radio, recorder, electronic toy telephone, electronic instrument, daily electrical appliances, household electricity.

The "3 Pin 2 Position Right Angle Slide Switch" is a compact and reliable mechanical switch designed for applications that require space-efficient, low-profile solutions. It features a right-angle design, meaning the switch is mounted parallel to the printed circuit board (PCB), making it an ideal choice for devices where vertical space is limited. Its 3-pin, 2-position configuration provides simple but effective control over electrical circuits, making it a popular component in consumer electronics, small appliances, and industrial applications.

This switch operates with a sliding actuator that can be toggled between two distinct positions, typically used to open or close a circuit. The 3-pin design allows it to be configured in either single-pole, single-throw (SPST) or single-pole, double-throw (SPDT) modes. In SPST mode, the switch can act as an ON-OFF control for a single circuit, while in SPDT mode, it can toggle between two different circuits or states, providing flexibility in how it’s used in circuit designs.

The right-angle mounting of this slide switch allows for horizontal positioning on a PCB. This is particularly useful when the device’s design requires side access to the switch, such as in compact enclosures where vertical space is constrained. This layout not only saves space but also makes it easy to integrate the switch into edge-mounted panels or tight control layouts.




HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
