Momentary LED Tact Switch

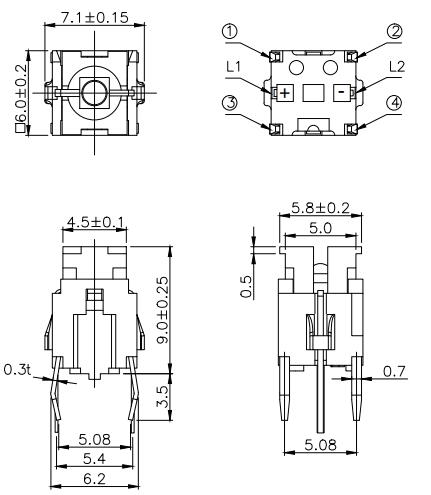

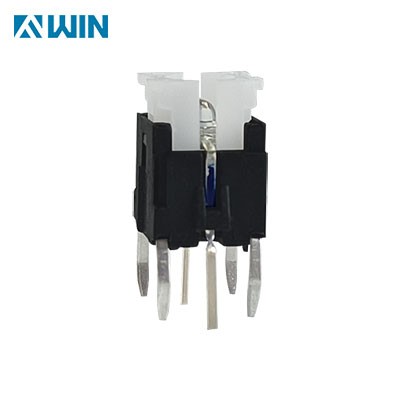

mini 6.0x6.0mm illuminated LED tactile switches

The TS9 series illuminated tact switches has 6*6mm base dimension, it's built in an LED indicator,the tiny led tactile switches has 6 led color options,we also provide with dual color LED options.


Circuit: SPST

Max current: 50mA

Max voltage: 12V DC

Dielectric voltage: 250V AC for 1 minute

Contact resistance: 100mΩ max (initial)

Insulation resistance: 100MΩ min

Operating force: 250 ±50gf

Total travel: 0.25 ±0.1mm

Life cycle:500,000 cycles min

Solder specifications: 260°C for 5 seconds

Function: momentary

Operating temperature: -20 to +70°C

1. Low and high intensity LED lights options and there has 6 unique color.

2. The tact switch with integrated LED that save the board space

3. Tactile and audible feedback

4. Laser etch icons cap offer an convenient actuation and highlight the illumination effect.

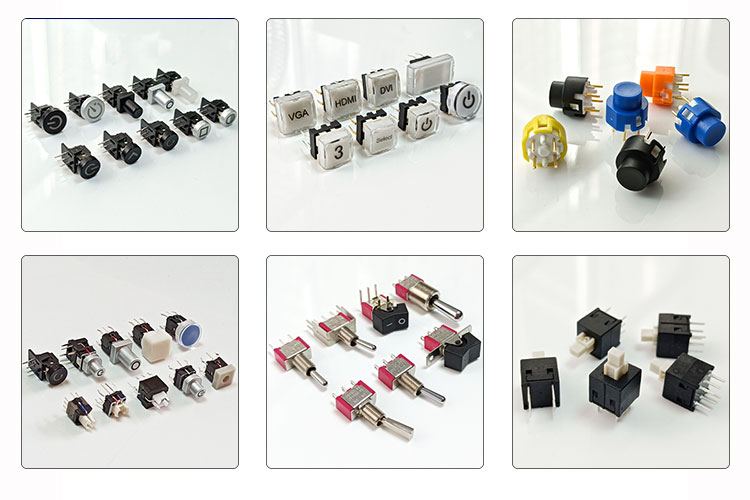

HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.



Our illuminated led tact switches has widespread applications for audio apparatus, medical instruments,lighting consoles,safe monitoring system,cashier devices,broadcasting system.
