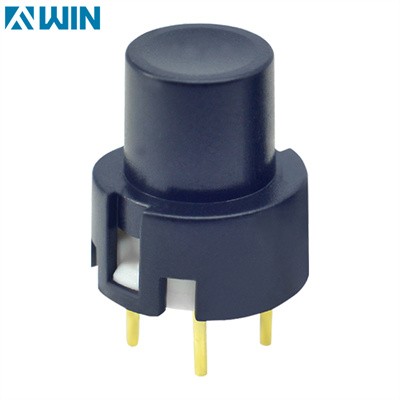

PCB Mount Keyboard Push Switch

Gray PCB mount SPST momentary tactile switch, when the push button is pressed the switch closed, the momentary tactile button rated at 10mA/35VDC and 5mm PIN spacing, the button color is available in red, gray, black,  white and blue colours, the normally open keyboard tactile push button is suitable for keyboards, security systems etc.

The PCB Mount Keyboard Round Push Switch is a compact, versatile, and tactile input device designed for keyboard and electronics applications. Its circular design, tactile feedback, and PCB mounting configuration make it suitable for creating custom keyboards, control panels, and interactive devices.

• Round Actuator Design

• A circular actuator ensures a sleek, ergonomic, and aesthetically pleasing input interface.

• Ideal for keyboards, control panels, and other applications where design matters.

• PCB Mount Configuration

• Designed for soldering directly onto a printed circuit board (PCB), ensuring secure and reliable connections.

• Compact profile minimizes space requirements on densely populated PCBs.

• Tactile Feedback

• Provides a crisp, responsive "click" upon actuation for a satisfying user experience.

• Available in different actuation forces (e.g., 45g, 60g) to match user preferences.

• Durable Construction

• High-quality plastic or metal components ensure long-lasting performance.

• Engineered for high-frequency use, with lifespans exceeding 50,000 to 1,000,000 actuations.

• Customization Options

• Available in multiple colors for easy identification or aesthetic customization.

Advantages

1. Compact and Space-Saving

• PCB mounting reduces the need for additional wiring, keeping designs neat and efficient.

• Ideal for compact layouts, including 60%, 75%, or other custom keyboard formats.

2. Enhanced User Experience

• Tactile feedback improves usability, ensuring accurate keypresses for typing, gaming, or control tasks.

3. Aesthetic Versatility

• Round design offers an elegant and modern look, appealing to enthusiasts and professionals alike.

4. Wide Compatibility

• Suitable for microcontroller-based projects (e.g., Arduino, ESP32) or traditional keyboard PCBs.

• Works with a range of keycap styles for further customization.

5. Durability and Reliability

• High-quality switches ensure consistent performance even under heavy usage.

The PCB Mount Keyboard Round Push Switch is a reliable, versatile component that combines functionality, durability, and aesthetics. Whether you're building a custom keyboard, designing an interactive device, or upgrading an existing system, this switch delivers excellent performance and customization potential. With features like tactile feedback, robust construction, and compatibility with advanced lighting options, it stands out as a go-to choice for hobbyists and professionals alike.

• Switch type: SPST momentary

• Contact resistance: 50mΩ Max

• Operating force: 130±50gf

• Actuator diameter: 9mm

• Insulation resistance: 100MΩ Min

• Dielectric strength: 500V AC (50~60Hz) for 1 minute

• Life (nominal current & voltage): 100000 cycle

• Temperature range: -10ºC to +65ºC

• Solderability: 235ºC for 5 seconds

• Travel: 0.80mm Max

• Colour: White

1. These tact switches are normally open SPST. When button is depressed the switch closes, but only while the button is down.

2. 10mA/35V DC Contact rating ,Pin spacing 5mm

3. Suitable applications for keyboards, security systems, about 5 colors.

4. PCB mount
