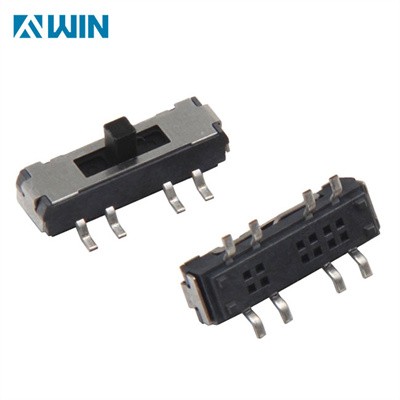

SMD 8 PIN Slide Switch

SMD 8 PIN Slide Switch


SMD 8 PIN Slide Switch is a kind of structure is relatively simple switch, the interior of sliding switch has a slider, sliding switch can be used at power supply cut off with put on, also can be used at recorder conversion guard, widely used in all kinds of radio, recorder, electronic toy telephone, electronic instrument, daily electrical appliances, household electricity.

The "SMD 8 Pin Slide Switch" is a compact, surface-mount device (SMD) switch designed for integration into modern electronics. This switch is primarily used for toggling between different circuits or states in various electronic devices, making it an essential component for projects that require precise control in space-constrained environments. The 8-pin configuration provides flexibility in circuit design, allowing the switch to control multiple functions or operate in more complex systems.

Unlike traditional through-hole switches, the "SMD 8 Pin Slide Switch" is mounted directly onto the surface of a printed circuit board (PCB) using surface-mount technology (SMT). This reduces the space required on the board, making it an ideal choice for small and densely packed electronic designs, such as smartphones, tablets, laptops, remote controls, and other compact gadgets.

The 8-pin configuration allows for a more versatile range of operations compared to standard 2- or 3-pin switches. Typically, it is used for double-pole, double-throw (DPDT) functionality, which means it can control two independent circuits, each with two operational states. This makes it suitable for applications that require multiple connections or need to toggle between different operating modes or settings within a device.

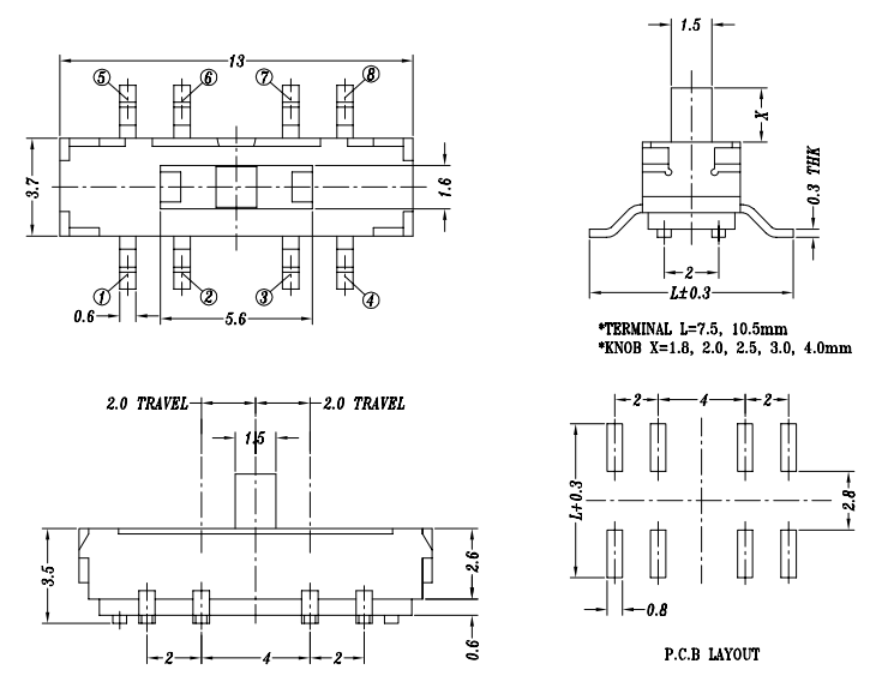

SMD 8 PIN Slide Switch.png
