12MM Waterproof Push Button Switch

12mm waterproof plastic push button switch with IP67 protection, designed for reliable button control in automotive horns, racing simulator steering wheels, and other electronic control devices.

1. Product Overviews

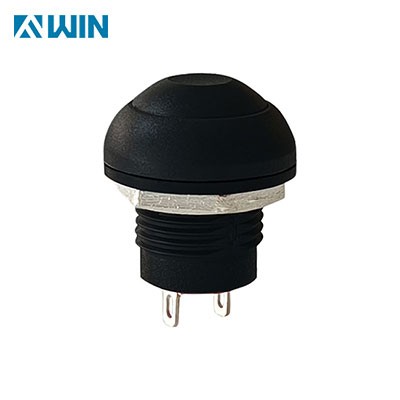

The 12mm Waterproof Push Button Switch is a compact plastic button switch designed for applications where space, water resistance, and convenient operation are important. With a 12mm panel mounting diameter and IP67 waterproof protection, it helps prevent water and dust from entering the switch under specified test conditions.

The plastic housing offers a lightweight alternative to metal push button switches, making it suitable for electronic devices and control panels where reducing component weight is a consideration. Its compact structure allows easy integration into limited installation spaces.

This switch is particularly suitable for automotive horn buttons and simulator steering wheels, where users need a responsive button for frequent manual operation. It can also be used in other low-voltage electronic control systems, depending on the electrical specifications and circuit requirements.

2. Product Specifications

3. Product Features & Selling Points

1. IP67 Waterproof Protection

The IP67-rated design provides protection against dust ingress and temporary immersion in water under specified test conditions. It is suitable for equipment that may be exposed to moisture, splashes, or dusty environments.

2. Compact 12mm Panel Mounting

With a 12mm mounting hole, this switch can be installed in small control panels, steering wheel assemblies, and compact electronic housings without taking up much space.

3. 12mm cutout fits existing steering wheel plates and button boxes.

Because 12mm is an industry-standard panel cutout, the switch drops into pre-drilled sim wheel plates and custom button boxes without rework. The same cutout is widely used in automotive dash and steering-wheel-adjacent panels, simplifying cross-platform sourcing.

4. Convenient Push Button Operation

The button provides direct manual control, making it suitable for functions such as horn activation and other momentary control operations.

4. Application Areas

The 12mm Waterproof Plastic Push Button Switch is suitable for various electronic and automotive control applications.

• Automotive Horn Buttons: Used as a manual activation button in automotive horn control systems and customized vehicle equipment.

• Racing Simulator Steering Wheels: Installed on simulator steering wheels as a function button for horn activation, menu selection, and other user-defined controls.

• Automotive Accessories: Suitable for selected vehicle accessories and auxiliary control panels where a compact waterproof button is required.

• Electronic Control Devices: Used in compact electronic equipment requiring manual switching and protection against dust and moisture.

• DIY & Custom Control Panels: Suitable for customized electronic projects, gaming equipment, and other panel-mounted control applications.

5. FAQ

Q1: What is the mounting hole size of this plastic push button switch?

The required panel mounting hole diameter is 12mm. Please confirm the panel thickness and installation dimensions before ordering.

Q2: Is this 12mm push button switch waterproof?

Yes. It has an IP67 protection rating, providing protection against dust and temporary water immersion under specified testing conditions.

Q3: Can this switch be used for automotive horn applications?

Yes. It can be used as a horn activation button in suitable automotive and customized electronic control systems. Please check the electrical rating against your circuit requirements.

Q4: Is this switch suitable for simulator steering wheels?

Yes. Its compact 12mm mounting size and push-button operation make it suitable for racing simulator steering wheels, including horn buttons and other auxiliary control functions.
