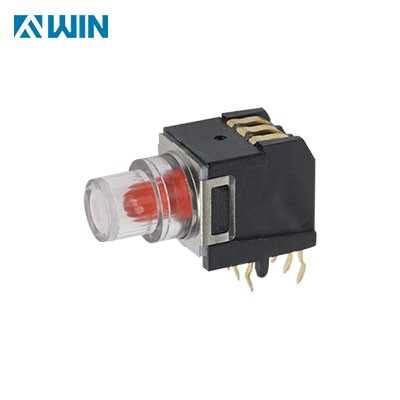

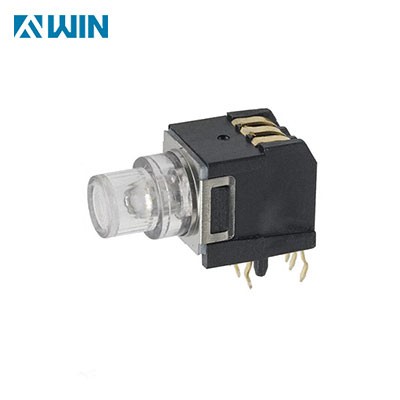

DIP Type led Right angle tact switch

DIP Type led Right angle tact switch


Right angled Illuminated Tactile Switches is applied For server, storage, automotive, network, infrastructure and medical applications.,The TS5 series led right-angled tact switch provides a long travel, a sharp tactile feel and a audible click.


Contact Configuration

SPDT-NO/NC

Terminal Type

Through Hole

Switch Operation

Momentary

Actuator Length

4mm

Actuator Type

Button

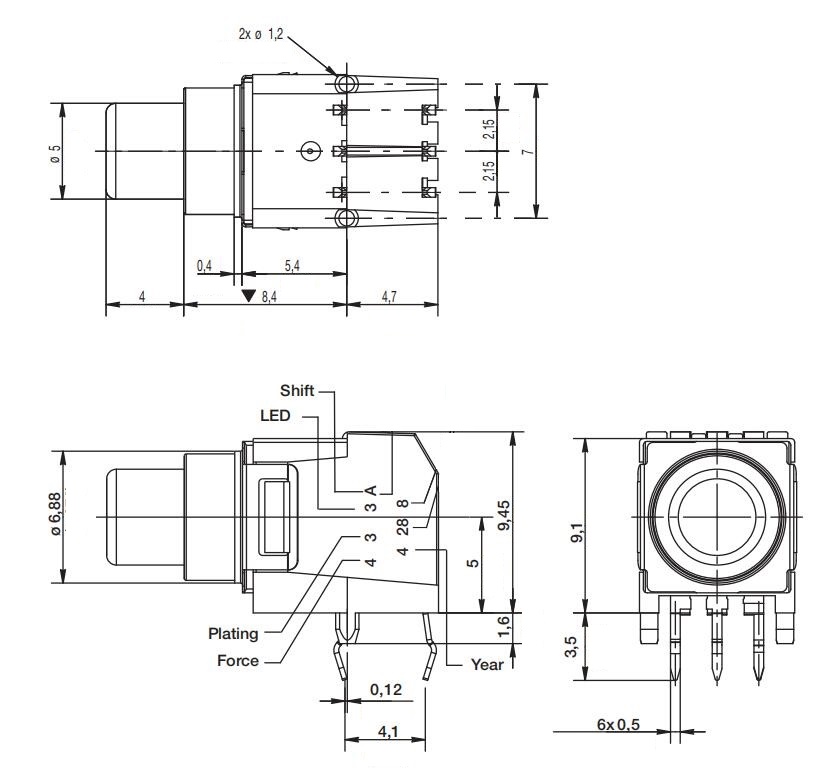

Dimensions

9.45*8*12.40mm

Illuminated

Yes

Contact Current Rating

100 mA @ 32 V dc

Operating Force

4 N

Voltage Rating

32V dc

Height

12.4mm

Contact Material

Gold Over Nickel Plated

Mechanical Life

25000Operations

Maximum Operating Temperature

+85°C




HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.





Our illuminated led tact switches has widespread applications for audio apparatus, medical instruments,lighting consoles,safe monitoring system,cashier devices,broadcasting system.
