PCB Panel mount DC power Jack

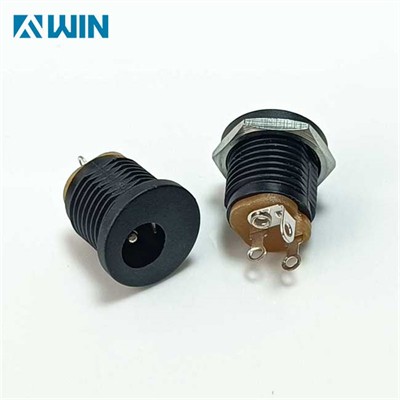

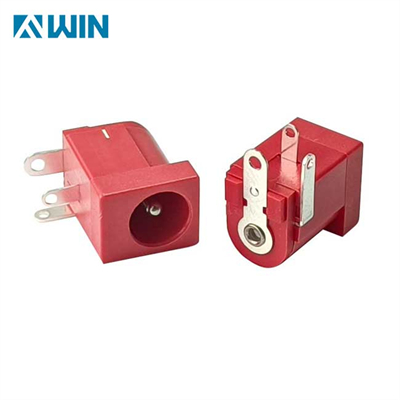

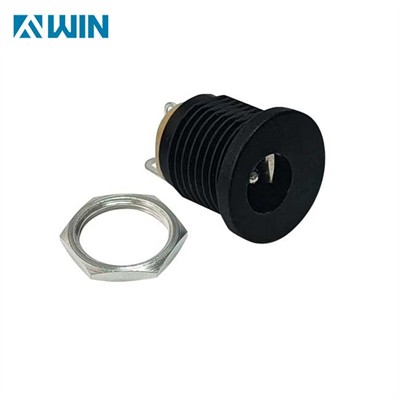

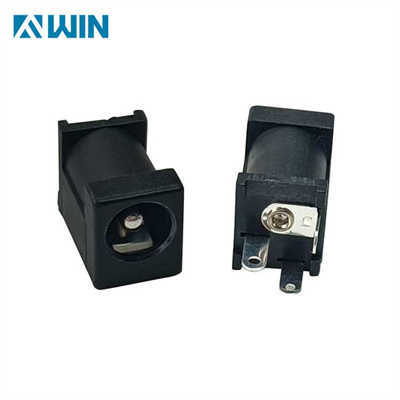

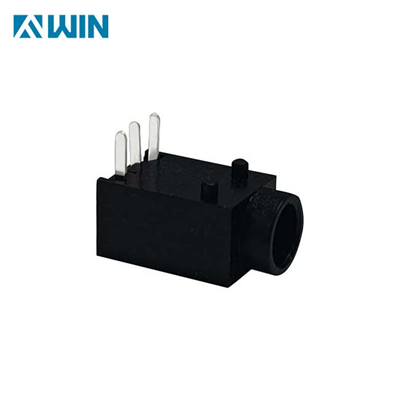

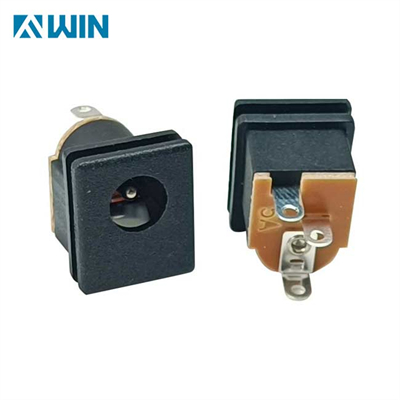

Female jack 3 pin PCB Panel mount DC power connector


A DC Power Jack connector is commonly referred to as a jack and has a center conductor with a hole in it to accept the male pin. These panel mount DC Power Jacks are highly insulated. These types of connectors are commonly used in mobile chargers, battery chargers, etc. The mating or contacting parts are made from high-quality copper material which protects data or electricity fluctuation for better performance.

  1. Excellent copper contacting or mating material

  2. Suitable for 6V to 30V 1A Applications

  3. Avoid the polarity conflict and short circuit.

A DC Power Jack 2.1 mm /socket is a crucial component in providing power to various electronic devices. It acts as a receptacle for a male DC power plug, ensuring a secure and reliable connection for power delivery. This connector is widely used in power supplies for laptops, tablets, routers, LED strips, and industrial equipment, making it a versatile and essential part of many electronic circuits.

The 3-pin female DC power jack connector (also known as a DC barrel socket or DC input jack) is a compact, intelligent connector designed to deliver low-voltage DC power to electronic devices. While it looks similar to the standard 2-pin DC jack, the third pin adds extra functionality—making it a popular choice for more advanced power management in consumer, industrial, and embedded electronics.

Whether you're integrating it into a custom PCB, designing a consumer device, or building a DIY electronics project, this connector offers more than just a power connection—it enables seamless power switching, battery protection, and better overall system design.

Specifications

  1. Working voltage : 6V to 30V

  2. Power rating : 1A

  3. Size : 3.5mm both

  4. Contacting material : High quality Copper

  5. Highly insulated for short circuit protection

The dc jack female connector/socket adds smart functionality to a classic design. Its ability to automatically switch power sources makes it an ideal choice for modern electronics that need both flexibility and safety. Compact, reliable, and easy to install, it’s a small component that plays a big role in power system design.
