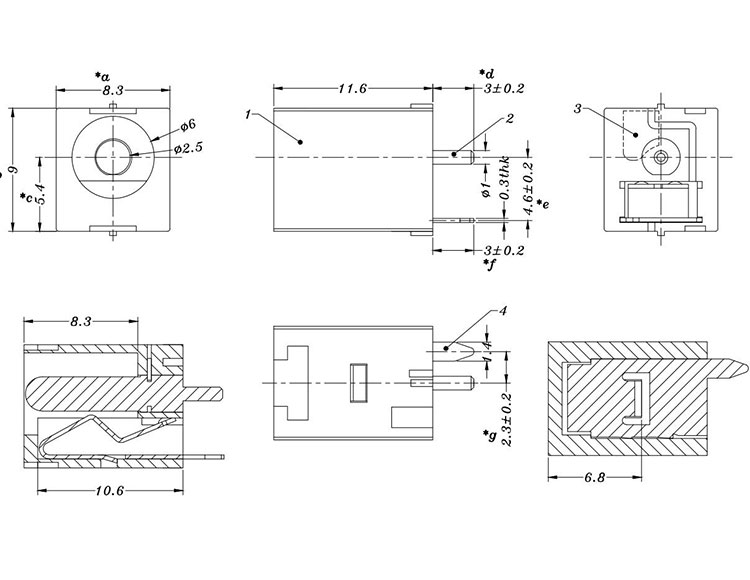

Female jack 3 pin PCB Panel mount DC sockets powers connectors
These DC Jack connectors are designed to be mounted onto printed circuit boards. They fit the standard PCB footprint for these types of connectors.
There are 3 solder connections on the bottom of the jack. The bottom center pin is the ground connection;
A vertical DC power jack is a type of electrical connector designed to be mounted on a panel or circuit board with its center pin oriented vertically. This orientation allows for a more compact and efficient use of space, especially in devices where the power input is located on the side or edge of the enclosure.
A vertical DC Jack Power is a barrel-style connector that mounts perpendicularly onto a printed circuit board (PCB), allowing a DC power plug to be inserted vertically from the top or bottom. This configuration is ideal for applications where board space is limited, and vertical plug insertion is preferred or required due to enclosure constraints or design aesthetics.
These jacks are commonly used in consumer electronics, test equipment, development boards, and embedded systems where a compact and clean power connection is needed.
Key Features of Vertical DC Power Jacks:
Vertical Orientation: The most defining characteristic is the vertical positioning of the center pin, which protrudes upwards from the connector body. This allows for a more streamlined design and can be beneficial in applications with limited space.
Panel Mount: Vertical DC power jacks are typically designed for panel mounting, meaning they are secured to a panel or enclosure using screws or other fastening methods.
Center Pin Diameter: The diameter of the center pin varies depending on the specific connector model, with common sizes including 2.1mm, 2.5mm, and 3.5mm.
Current Rating: The current rating indicates the maximum amount of current the connector can safely handle. This is an important factor to consider when choosing a connector for a particular application.
Shielding: Some DC Power Connectors may include shielding to protect the internal circuitry from electromagnetic interference (EMI) and radio frequency interference (RFI). This is particularly important in applications where noise sensitivity is a concern.
Solder Termination: Most vertical DC power jacks have solder termination, meaning their leads are designed to be soldered directly to the circuit board or other components. This provides a secure and durable connection.
