The right angle DC power socket has three pins,it makes it easy to create a system that is powered by a wall adapter when one is plugged into the jack and by a battery the remainder of the time.

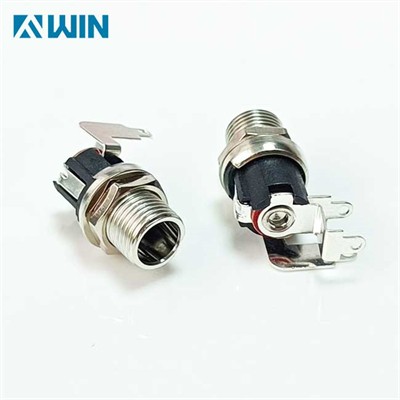

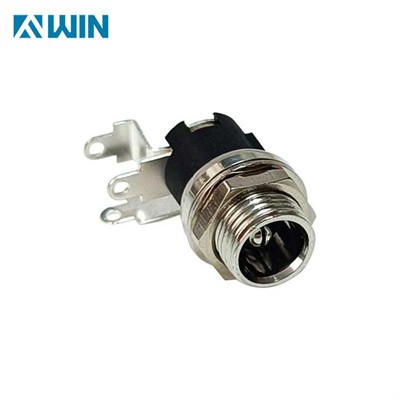

This is metal housing DC power jack, it has wide range of options. DC power jacks including straight and right angle PC mount styles, plastic or metal housings, solder terminals and a plenty of center pin size options.
The right angle DC power socket has three pins,it makes it easy to create a system that is powered by a wall adapter when one is plugged into the jack and by a battery the remainder of the time.
DC Power Jack Right Angled Shielded are specialized connectors designed to provide reliable power connections while optimizing space in electronic devices. The right angle configuration allows for efficient routing of cables and minimizes the footprint of the connector on a circuit board or panel, making them particularly valuable in compact or densely packed designs. With the added durability and protection provided by the metal housing, these connectors are ideal for various applications across multiple industries.
Right-Angled Design: The key feature of this type of connector is its right-angled configuration. Instead of extending straight out from the device's surface, the jack is mounted at a 90-degree angle. This design offers several benefits:
Space Saving: The right-angled design minimizes the connector's footprint, making it ideal for space-constrained applications such as portable devices, embedded systems, and densely packed PCBs. It prevents the connector from protruding excessively, reducing the risk of damage or accidental disconnection.
Improved Cable Management: The angled design allows for a more efficient routing of the DC power cable, reducing clutter and improving the overall aesthetics of the device. The cable can be routed neatly along the side or bottom of the device, rather than extending directly outward.
Ergonomics: In some applications, the right-angled design can improve the ergonomics of the device. For example, in portable devices, it can prevent the power cable from interfering with the user's hand or other components.
Shielding: The integrated shielding is another crucial aspect of a DC Power Jack Connector, 2.0 mm Center Pin, 5.0 A, Right Angle, Panel Mount. This shielding, typically a metal housing around the connector, protects the internal circuitry from electromagnetic interference (EMI) and radio frequency interference (RFI). This is particularly important in applications where noise sensitivity is a major concern.
EMI/RFI Protection: The shielding effectively reduces the impact of external electromagnetic fields on the sensitive electronics within the device, ensuring stable and reliable operation. This is crucial in environments with high levels of electromagnetic noise.
Signal Integrity: By minimizing EMI/RFI, the shielding helps maintain signal integrity, ensuring that the DC power is delivered cleanly and efficiently to the device.
Features:
1. Standard DC Power Jack connector and Plugs are available in locking and non-locking versions
2. They offer straight and right angle PC mount, plastic or metal housings, solder terminals and a variety of center pin size options.
