Housing Wafer Terminal 1.25mm

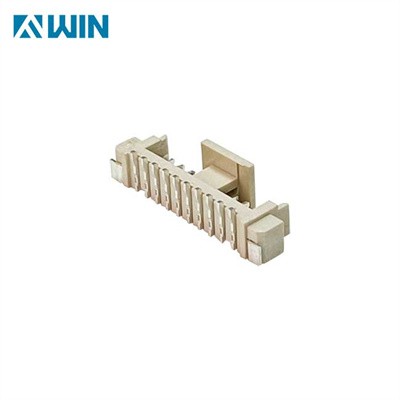

This is Housing Wafer Terminal 1.25mm 10-Pin male shrouded header SMT type wire to board.

This is Housing Wafer Terminal 1.25mm male shrouded header straight type wire to board, Our board-to-wire connectors establish the connectivity between wire and a printed circuit board (PCB). They provide robust, modular, compact connector solutions to anticipate and meet the growing demands our customers face.

Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ, such as LED light bar connector, PCB board.


Rated voltage: 50V AC,DC

Working temperature: -25℃~+85℃

Rated current: 1.0A AC,DC

Insulation resistance: 100MΩMin.

Pressure value: 500V AC/minute

Contact resistance: 20MΩMax.

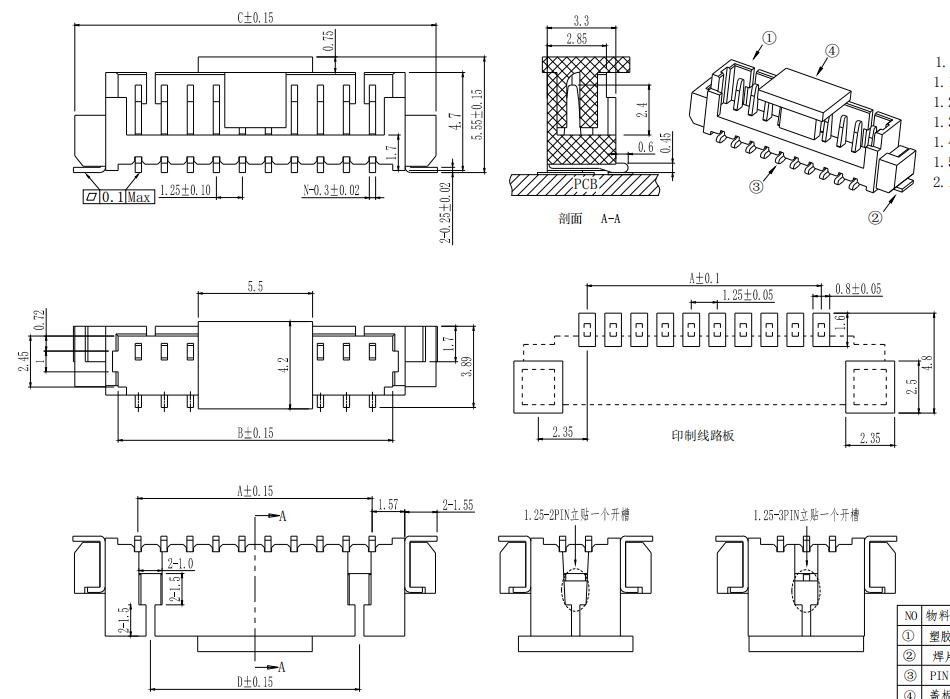

1.25间距立贴-ph1250-Lt-10c size.jpg
