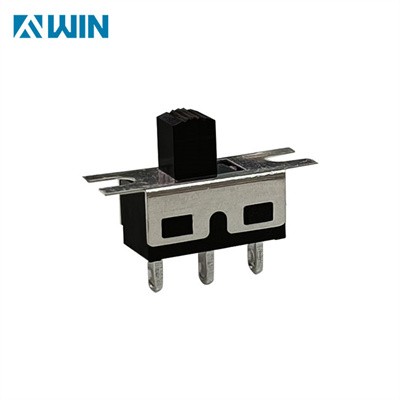

Mini 3 Pin Vertical Slide Switch

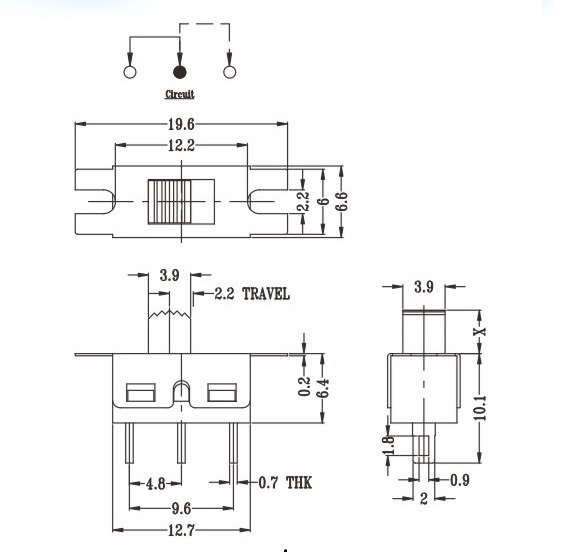

Mini 3 Pin Vertical Slide Switch is a slide switch has three terminal and with tabs, it comes in 19.6*6.6*6.4mm, it has two position and a variety of actuators and terminations choices.

The "Mini 3 Pin Vertical Slide Switch" is a compact and efficient switch designed for electronic devices where vertical mounting is required. This switch features a 3-pin configuration and a vertical sliding mechanism, making it ideal for applications that require space-saving designs and easy user access. It is commonly used in consumer electronics, small appliances, DIY projects, and other compact devices where control precision and durability are essential.

The 3-pin configuration of this slide switch supports two primary modes: single-pole, single-throw (SPST) or single-pole, double-throw (SPDT). In an SPST configuration, the switch toggles between ON and OFF positions, allowing users to control power to a circuit. In an SPDT configuration, the switch can alternate between two different circuits, providing more flexibility for mode switching or signal routing. This versatility makes the "Mini 3 Pin Vertical Slide Switch" suitable for a wide range of circuit designs.

The vertical sliding mechanism is a key feature of this switch. The actuator moves up and down along the vertical axis, allowing for straightforward operation. This is particularly useful in applications where the switch needs to be mounted in a confined space or where access from the top of a device is necessary. The smooth sliding action provides tactile feedback, ensuring that users can feel when the switch has been successfully toggled between positions.

This switch is designed for PCB (Printed Circuit Board) mounting, making it easy to integrate into electronic designs. Its small size makes it perfect for devices where space is limited, allowing it to fit neatly into dense PCB layouts. The pins are designed for stable soldering, ensuring a reliable electrical connection even after extended use.

The "Mini 3 Pin Vertical Slide Switch" is constructed with durable materials, ensuring long-lasting performance. The body is typically made from tough, high-quality plastic, providing protection against dust and minor environmental factors, while the metal pins are corrosion-resistant, ensuring strong electrical connectivity. Its mechanical structure is built to withstand thousands of toggling cycles, making it a cost-effective and reliable choice for manufacturers and engineers.
