Momentary Right-angled Led Tact Switch

Tact Switch has LED Illumination in a Right Angle Design

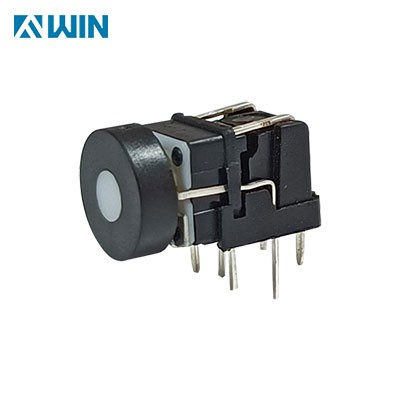

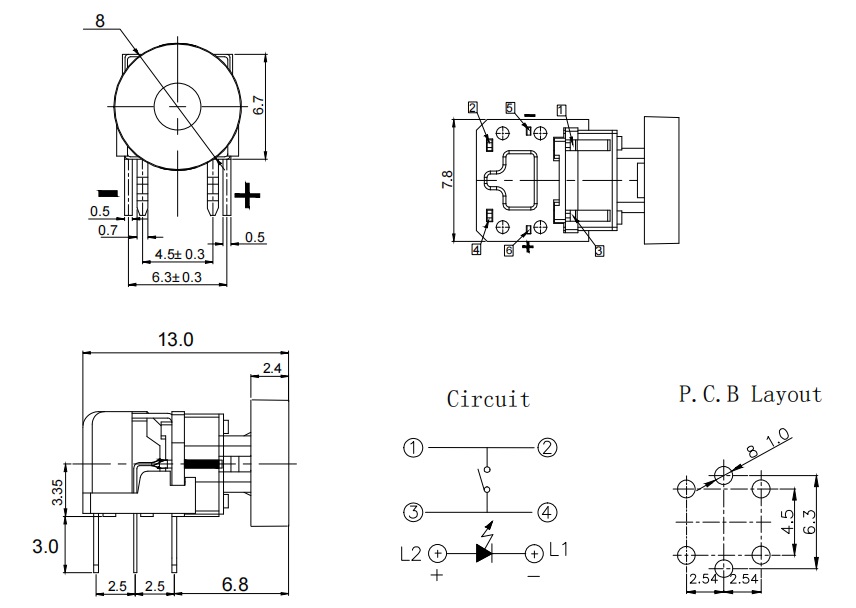

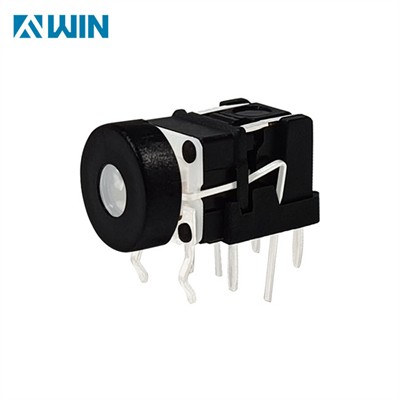

Our TS17 series through hole tactile switches are led-illuminated and have a right angle terminal. They are available in a variety of LED and cap colors. The TS17 90 degree led tact switches are made with high stable tactlie dome technology. the round right-angle led tact button with 7.5mm circle black cap and fix panel to fix the terminal when you mount it in the PCB.

The momentary right-angled LED tact switch is a widely used component in electronic devices, recognized for its user-friendly design and effective feedback mechanism. Combining a compact form factor with integrated illumination, this switch enhances the usability of various applications. This overview will delve into the features, applications, benefits, and key considerations for selecting momentary right-angled LED tact switches.

The momentary right-angled LED tact switch is designed to be mounted at a 90-degree angle to the printed circuit board (PCB). This orientation allows for efficient use of space, making it particularly suitable for compact electronic designs where vertical space is limited. The momentary action means the switch only remains active while being pressed, reverting to its original position once released.

One of the primary features of this switch is the integrated LED, which illuminates when the switch is engaged. This provides immediate visual feedback, indicating the operational status of the device. Such visual cues are particularly beneficial in low-light environments or complex user interfaces where quick recognition of the switch’s state is essential.

The tactile feedback provided by the switch ensures users receive a clear indication of activation. The distinct click sensation when pressed is vital for applications requiring precision and reliability.

The 90-degree mounting configuration optimizes PCB layout, making it suitable for compact designs in devices where space is at a premium. This design is widely used in handheld devices, wearables, and other small electronics.


1. Sound clearly, Excellent contact feeling
2. Super bright LED,Smooth illuminated technology
3. Snap-action contact mechanism
4. Small and short body for mounting in tight spaces
5. Bright LEDS of single or dual colors available
6. OEM Cap color and symbols service are available
