Push On Off Switch

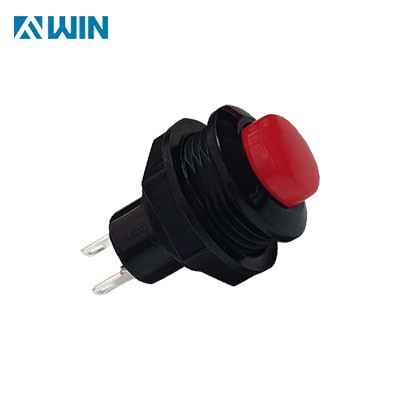

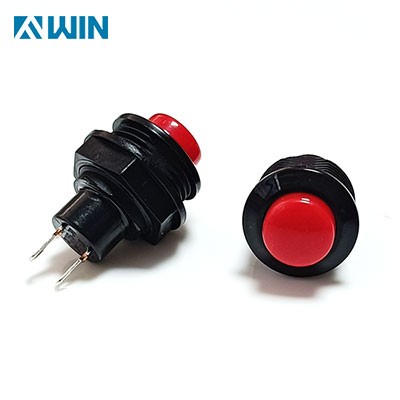

This is 12.7mm cut-out SPST momentary push button switch, it has two terminals and actuator is available with red and black.

This is PB01 series 2 pin Plastic Push Button Switch with panel mount cut-out 12.7mm, the button has red and black color is available, the momentary SPST two pin push button switch provides the nut for mounting.


Rating:3A 125VAC, 1.5A 250VAC

Contact resistance: 50mΩ(max)

Insulation resistance: DC500V 100MΩ(min)

Dielectric strength: 1000VAC for 1 minute;

Total travel:2.0±0.4mm

Operating force:150±100gf

Operating life: 10,000 cycles


1. Multiple button color options

2. Suitable applications for keyboards, security systems, about 5 colors.

3. Panel mount
