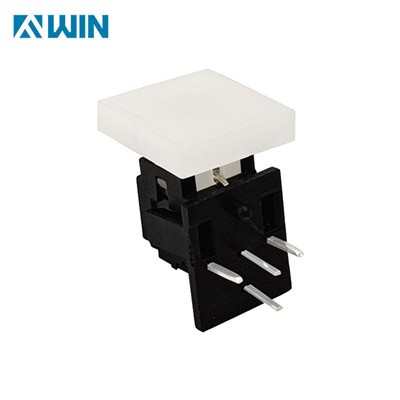

Right Angle in built LED Tact Switch

TS20 series illuminated tact switches comes with high bright LEDs that are able to meet customization requirements. With its reduced space usage on board; the TS20 series LED momentary tact switch is perfect for network infrastructure, automotive and medical applications.

Right angle built-in LED tactile switches are designed to be mounted perpendicularly to the printed circuit board (PCB). This unique mounting orientation is particularly beneficial in applications with space constraints or where a compact design is essential. Unlike traditional switches that lie flat on the PCB, the right angle configuration allows for more efficient use of space, making it ideal for devices that require a low-profile component.

The integration of an LED within the switch itself provides an additional layer of functionality. The LED serves as a visual indicator, illuminating when the switch is activated. This feature is particularly useful in environments where users need to quickly ascertain the status of a device, such as low-light conditions or in complex control panels. The tactile feedback offered by these switches further enhances the user experience, providing a distinct click sensation when the switch is pressed, confirming that the action has been registered.

The right angle built-in LED tactile switch is a versatile and essential component that significantly enhances user interaction across a wide range of electronic devices. Its combination of tactile feedback, visual indication, and compact design makes it an ideal choice for applications in consumer electronics, industrial controls, medical devices, and automotive systems.

As technology continues to advance and devices become more compact and user-friendly, the demand for innovative components like right angle built-in LED tactile switches will likely grow. Their adaptability, reliability, and ease of integration make them invaluable for engineers and designers aiming to create intuitive, efficient, and durable electronic products.

1. Enable ease of use with tactile and audible feedback

2. Save board space with integrated superbright LED

3. Many LED lights are available.

4. Right Angle type and the P.B.C board become 90 degrees when soldered.
