Right-angle Red Led Tactile Switch

Tact Switch has LED Illumination in a Right Angle Design and circle cap

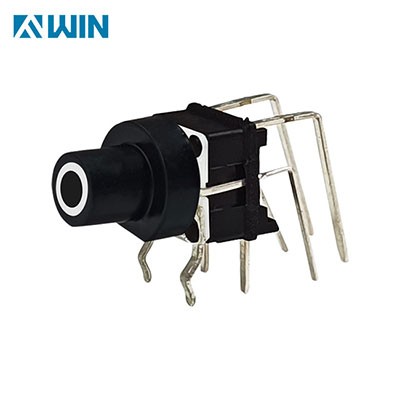

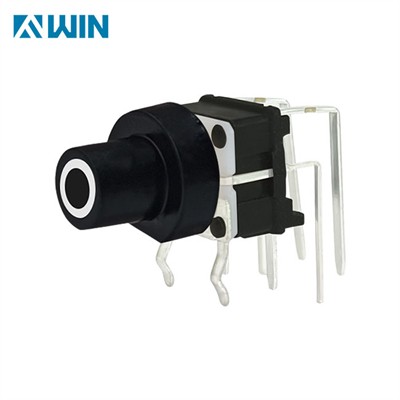

The TS17 series right angled illuminated led tact switch with 4.5mm diameter black cap button, the cap was engraved with circle symbol. it offers a variety of LED options, reliable dome technology, independent LED leads, various cap options, and LED color matching upon request.

The right-angled illuminated LED tact switch with a 4.5mm diameter black cap is a specialized electronic component designed to enhance user experience in various applications. This switch combines functionality, compact design, and aesthetic appeal, making it a popular choice in consumer electronics, industrial devices, and more. Below, we explore its features, applications, advantages, and considerations for selection.

The right-angled design of this tact switch allows for efficient use of space on printed circuit boards (PCBs), making it suitable for compact electronic devices where vertical clearance is limited. The switch is mounted at a 90-degree angle, optimizing PCB layout and enabling seamless integration into various devices.

The integrated LED illumination is a standout feature. When the switch is pressed, the LED lights up, providing immediate visual feedback about the switch’s operational status. This feature is particularly valuable in low-light conditions or complex user interfaces where users need to quickly identify whether the device is active. The black cap, measuring 4.5mm in diameter, provides a sleek and unobtrusive look, blending well with many device designs while also offering a comfortable surface for user interaction.


1. Vertical and right-angle models

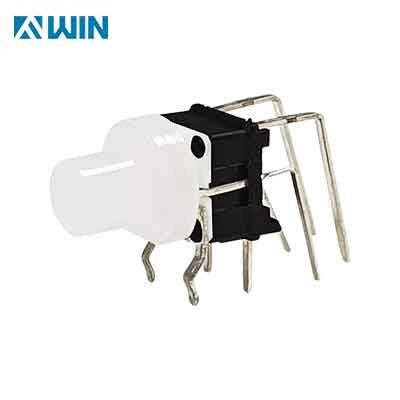

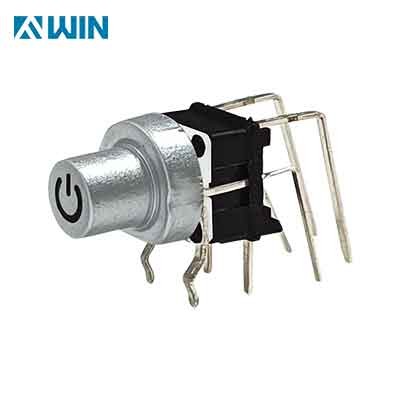

2. Multiple caps and legends

3. Several LED colours and bi-colour options
