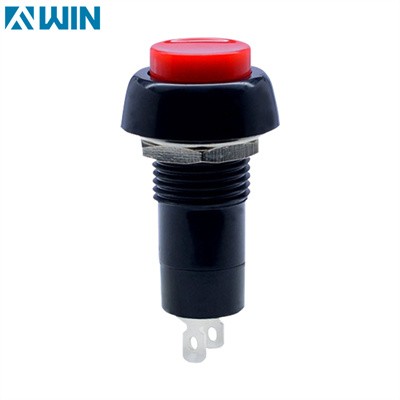

Two Pin 12mm Red Push Button Switch

this is momentary Two Pin 12mm Red Push Button Switch

The PB10 series normally open ON-(OFF) plastic red SPST push button switch, the push button rated at 1A 250VAC, the service life is rated up to 50,000 cycles, the panel mounting size 12mm, it opens the circuit when pressed, the push button is closes when released.


Rating:3A  125VAC

       1.5A  250VAC

Contact resistance: 50mΩ(max)

Insulation resistance: DC500V 100MΩ(min)

Dielectric strength: 1000VAC for 1 minute;

Total travel:3.0±0.5mm

Operating force:350±100gf

Operating life: 10,000 cycles

Mechanical life:50,000 cycles Min

Operating temperature:0℃~85℃


1. Multiple button color options

2. Suitable applications for keyboards, security systems, about 5 colors.

3. Panel mount
