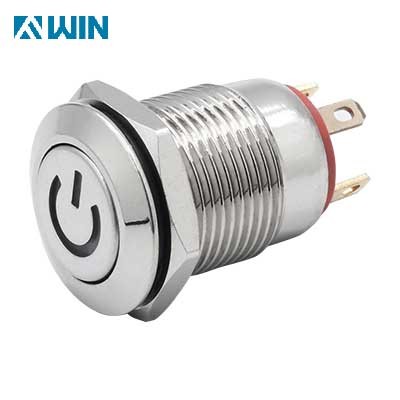

12MM Metal Pushbutton Switch with Power LED

12mm latching metal push button switch with power LED is designed for self-service terminals and compact electrical control boxes.

It features a flat metal button with a power symbol and a built-in green LED, the latching function keeps the switch in its selected state after pressing. Pressing it again changes the state back. This makes it suitable for equipment power control when the circuit is designed for latching operation.

The green LED provides a clear visual indication of the switch or equipment status. When wired to illuminate with the powered state, it helps operators identify whether the equipment is on. The flat button design also gives the panel a neat appearance and helps reduce accidental pressing.

With a 12mm mounting size and IP65 protection rating, this switch is suitable for compact control panels that require clear operation and protection against dust and water jets.

Key Features

12mm mounting size: Fits compact control panels and electrical enclosures.

Latching operation: Maintains its selected state until pressed again.

Green power LED: Provides visible status indication.

Power symbol: Makes the intended function easy to identify.

Flat metal head: Creates a neat panel surface and helps reduce accidental pressing.

IP65 protection: Protects against dust and water jets under specified test conditions.

Solder lug terminals: Support soldered wire connections.

Technical Specifications

Please confirm the rated current, LED operating voltage, contact configuration, and housing finish with FVWIN before ordering.

Applications

This 12mm latching metal push button switch is suitable for equipment that needs compact power control and clear visual indication.

Self-service terminals: Provides a clearly marked power control.

Query and information terminals: Supports compact equipment power management.

Small outdoor control boxes: Offers a space-saving switch with IP65 protection.

Electrical enclosures: Combines switching and status indication in one panel opening.

Compact equipment: Helps operators identify the power control and operating state.

For outdoor installations, check the enclosure seal and actual exposure conditions. IP65 protection does not mean the switch can be submerged in water.

About FVWIN

Dongguan FVWIN Electronics manufactures electronic switches and connectors for industrial and electronic equipment. Its product range includes metal push button switches, illuminated push buttons, tact switches, DIP switches, and other electronic components.

FVWIN provides OEM and ODM services for different project requirements. Buyers can contact the team to confirm product specifications, discuss customization options, and request quotations.

Frequently Asked Questions

1. What does latching operation mean?

A latching switch maintains its selected state after being pressed. Pressing it again changes the state back. This differs from a momentary switch, which returns to its normal position when released.

2. Does the green LED stay on when the equipment is powered?

It can, if the LED is wired to the appropriate power or status circuit. The actual indication depends on the wiring design. Confirm the LED operating voltage and connection method before installation.

3. Is the flat-head design useful for self-service terminals?

Yes. The flat profile gives the panel a neat appearance and can help reduce accidental pressing caused by bumps or contact with nearby objects.

4. Can this switch be used in outdoor control boxes?

The IP65 rating provides protection against dust and water jets under specified test conditions. Correct installation and enclosure sealing are important. Confirm suitability for exposure to heavy rain, saltwater, or other demanding conditions.
