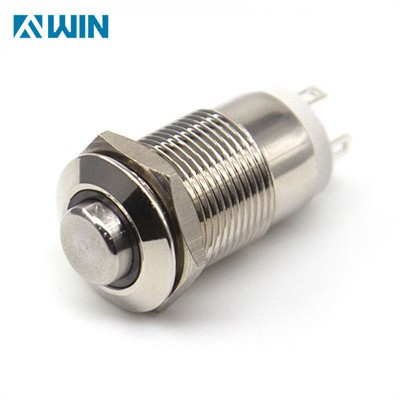

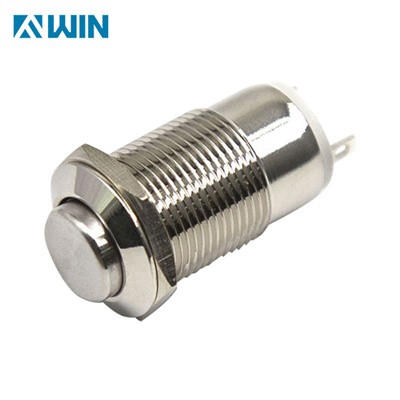

12MM Rasied Head Metal Pushbutton Switch with Dot LED

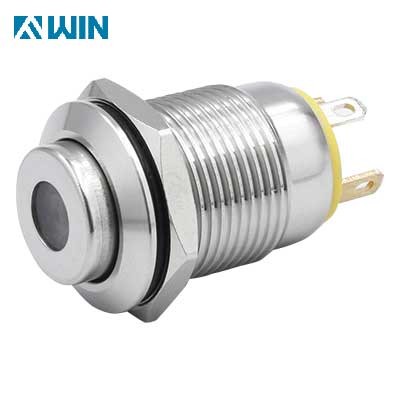

12mm raised head metal push button switch with dot LED is designed for vehicle accessories, marine equipment, and compact control panels. It features a raised metal button with a small LED at the center.

Unlike a ring-lit switch, the dot LED provides a focused indicator without illuminating the entire button edge. This design suits users who prefer a subtle light and a clean metal panel appearance. The raised head is easier to locate by touch, even when the vehicle or equipment is moving. Its metal housing offers a solid feel, while the IP65 rating provides protection against dust and water jets under specified test conditions.

The momentary function activates the circuit while the button is pressed. When released, the button returns to its original position.

Key Features

12mm mounting size: Fits compact control panels and custom installations.

Center dot LED: Provides a focused status indication without a full illuminated ring.

Raised head: Easier to locate and press by touch.

Metal housing: Offers a durable surface and a solid appearance.

IP65 protection: Protects against dust and water jets under specified test conditions.

Momentary operation: Suitable for temporary control signals and trigger functions.

Solder lug terminals: Allow wire connections by soldering.

Technical Specifications

Please confirm the rated current, LED operating voltage, contact configuration, and LED wiring method with FVWIN before ordering.

Applications

This 12mm dot LED metal push button switch is suitable for compact control systems and vehicle modifications.

Yachts and marine equipment: Provides a compact button for auxiliary electrical controls.

UTVs and off-road vehicles: Suitable for selected accessory control functions.

Motorcycle modifications: Fits custom panels with limited mounting space.

Auxiliary lighting: Can trigger compatible spotlight circuits.

Air pumps and accessories: Supports momentary control where the circuit requirements match.

Equipment start or trigger controls: Provides a tactile button with a subtle visual indicator.

For marine and outdoor use, check the complete installation for water exposure, vibration, and sealing requirements. IP65 protection does not mean the switch can be submerged.

About FVWIN

Dongguan FVWIN Electronics manufactures electronic switches and connectors for industrial and electronic equipment. Its product range includes metal push button switches, illuminated push buttons, tact switches, DIP switches, and other electronic components.

FVWIN provides OEM and ODM services for different project requirements. Buyers can contact the team to confirm specifications, discuss customization options, and request quotations.

FAQ

1.  What is the difference between a dot LED and a ring LED switch?

A dot LED illuminates a small point at the center of the button. A ring LED illuminates the surrounding edge. The dot style is suitable for customers who want a subtle indicator and a less illuminated panel appearance.

2.  Is the raised head useful for vehicle controls?

Yes. The raised head is easier to locate by touch, which can be useful when operating auxiliary controls while wearing gloves. Install switches where they can be operated safely without distracting the driver or rider.

3.  Can this switch control auxiliary lights or an air pump?

It can provide a momentary control signal if its electrical rating and contact configuration match the circuit. For higher-current loads, a suitable relay or control module may be required. Confirm the rated current before use.

4. Is this switch suitable for yachts and outdoor vehicles?

The IP65 rating provides protection against dust and water jets under specified test conditions. Suitability also depends on installation, sealing, vibration, and exposure to saltwater. Confirm the application requirements before installation.
