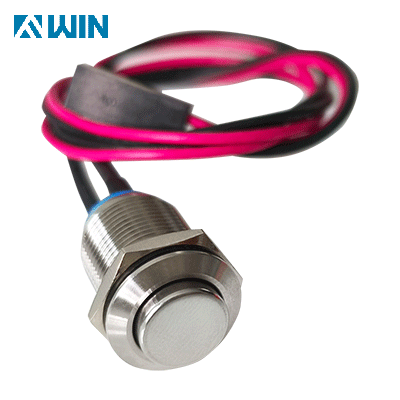

12mm Momentary Metal Push Button Switch with Wire

12mm momentary metal push button switch with wire is designed for access control systems, door exit buttons, and call buttons. It features a raised metal head and pre-attached wires for easy installation.

The momentary function is suitable for door release and call signal applications. The circuit is activated when the button is pressed and returns to its normal state when released. No LED is included, making it an ideal choice for applications that do not require illuminated indication.

The pre-wired design reduces on-site soldering. Installers can connect the wires to a compatible terminal block or connector. The raised head is easy to locate and press, including for users who prefer a more noticeable button surface.

Key Features

12mm mounting size: Fits compact panels and enclosures.

Momentary operation: Activates the circuit only while pressed.

Pre-wired connection: Reduces on-site soldering work.

Raised metal head: Easy to locate and press.

No LED: Suitable for applications without illuminated indication.

IP65 protection: Protects against dust and water jets under specified test conditions.

Please confirm the rated current, contact configuration, wire length, and mounting dimensions with FVWIN before ordering.

Applications

This 12mm momentary metal push button switch is suitable for equipment that needs a simple trigger signal.

Check the controller's input requirements before installation. The switch should be matched to the required voltage, current, and contact configuration.

About FVWIN

Dongguan FVWIN Electronics manufactures electronic switches and connectors for industrial and electronic equipment. Its product range includes metal push button switches, illuminated push buttons, tact switches, DIP switches, and other electronic components.

FVWIN provides OEM and ODM services for different project requirements. Buyers can contact the team to confirm product specifications, discuss customization options, and request quotations.

Frequently Asked Questions

1. Is this switch suitable for an access control exit button?

Yes, it can be used as a momentary input for a compatible access control system. Confirm the controller's electrical requirements and contact configuration before installation.

2. Does the switch require soldering during installation?

The switch comes with pre-attached wires, reducing the need for on-site soldering. The wire ends can be connected to a compatible terminal block or connector.

3. Does this model have an LED indicator?

No. This version does not include an LED. It is suitable for door exit and call applications that do not need illuminated indication.

4. Can the IP65 switch be installed outdoors?

IP65 protection covers dust and water jets under specified test conditions. Outdoor suitability also depends on the enclosure, mounting seal, and exposure conditions. The switch is not rated for immersion.
