2mm Vertical Wafer Connector

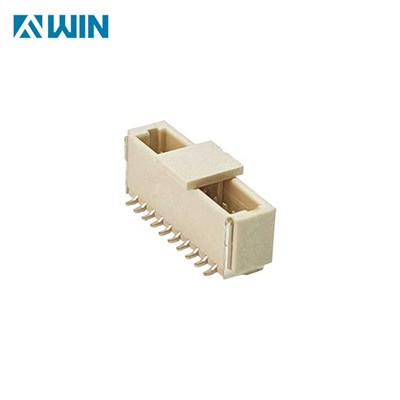

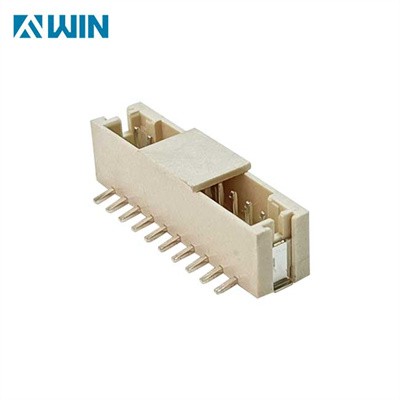

This is Housing Wafer Terminal 2.0mm 10-Pin male shrouded header SMT type wire to board.

A 2mm vertical wafer connector is a type of electrical connector commonly used in electronic devices and printed circuit boards (PCBs). It is characterized by its compact size, vertical orientation, and the ability to mate with corresponding connectors or headers.

1.Male Connector: A vertically oriented connector with multiple pins arranged in a linear configuration. These pins are designed to mate with corresponding female connectors or headers.

2.Female Connector: A receptacle or socket connector that accepts the pins of the male connector. It is often mounted on a PCB or another electronic device.

3.Both the male and female connectors feature a wafer-like design, with pins or receptacles arranged in a grid pattern at a pitch of 2mm (center-to-center spacing).

4.Compact Size: The 2mm pitch allows for a compact design, making it suitable for applications with limited space.

5.Vertical Orientation: The vertical configuration saves horizontal space on the PCB, enabling efficient PCB layout and design.

6.Reliable Connection: The connectors are designed for secure mating and provide reliable electrical connections, ensuring proper signal transmission.

7.Versatility: They offer versatility in design and configuration, with options for different pin counts and mating configurations to suit specific application requirements


Rated voltage: 50V AC,DC

Working temperature: -25℃~+85℃

Rated current: 1.0A AC,DC

Insulation resistance: 100MΩMin.

Pressure value: 500V AC/minute

Contact resistance: 20MΩMax.
