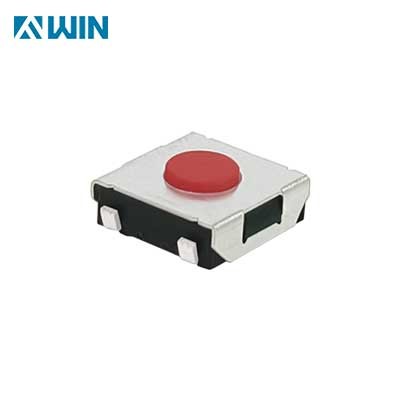

6*6 Tactile Push Button Switch

The 6x6 Tact SMD (Surface-Mounted Device) Switch is an advanced component designed to offer high precision, durability, and a compact footprint for a wide range of electronic applications. Ideal for use in consumer electronics, medical devices, automotive controls, and industrial equipment, this tact switch delivers a tactile response with minimal noise and exceptional reliability.

The 6x6 Tact SMD Switch is engineered for surface-mount technology (SMT) assembly, making it suitable for automated manufacturing processes that demand high efficiency, precision, and speed. This switch is designed to withstand heavy use while offering a long lifecycle, ensuring a dependable, low-maintenance solution for devices that require frequent user interaction.

Key Specifications

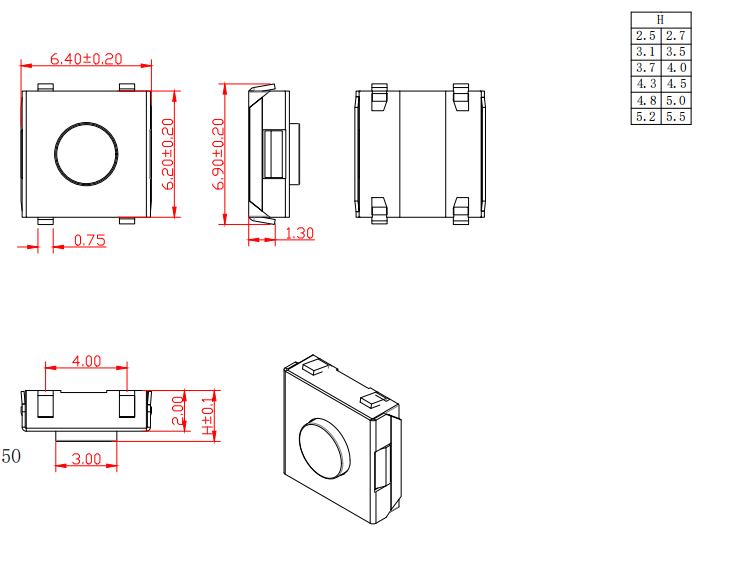

• Dimensions: 6mm x 6mm, compact and space-efficient

• Mounting Type: Surface-mount (SMD), allowing for easy integration into automated PCB assembly lines

• Actuation Force: Typically ranges from 100g to 250g, providing a tactile and responsive “click” feedback

• Operating Life: 500,000+ cycles, ensuring long-lasting performance and minimal maintenance

• Contact Configuration: SPST (Single Pole Single Throw) momentary switch, suitable for simple on/off operations

• Sealing: Some versions of the 6x6 Tact SMD Switch come with a sealed design, offering protection against dust and moisture (optional depending on model)

• Electrical Rating: Usually rated for 12V DC, 50mA (may vary based on specific model), ideal for low-power applications

• Operating Temperature: Typically -40°C to +85°C, making it suitable for a wide range of environmental conditions

These specifications ensure the 6x6 Tact SMD Switch meets the stringent requirements of various industries while maintaining the necessary space-saving qualities for compact electronic designs.

Key Features and Benefits

Compact, Space-Efficient Design

The 6x6 Tact SMD Switch is specifically designed with a small footprint of just 6mm x 6mm, making it a perfect choice for modern electronics where every millimeter counts. Surface-mount technology allows for faster and more efficient integration into PCBs, enabling high-density designs without compromising performance. This compact size doesn’t mean the switch sacrifices functionality—instead, it provides reliable tactile feedback in an optimized form factor that fits seamlessly into a wide array of devices.

A 6x6 tactile push button switch is a common type of switch used in electronic devices for user input. The 6x6 dimensions refer to the size of the switch, making it compact and suitable for various applications where space is limited.

These tactile push button switches are designed to provide a tactile feedback to the user when pressed, offering a physical sensation or click that confirms the actuation of the switch. This tactile response is essential for users to feel and know that the input has been registered, enhancing the overall user experience.

The push button feature means that the switch is activated by pressing it, and it typically returns to its original position when released. This mechanism is ideal for applications where momentary contact or intermittent switching is required, such as in keyboards, control panels, and electronic devices with user interface buttons.

Overall, the 6x6 tactile push button switch combines a compact size, tactile feedback, and push button functionality, making it a versatile component for incorporating user input in a wide range of electronic devices and applications.

1-Ultra-miniature 6.0 x 6.0mm

2-Multiple actuator options

3-Surface mount low profile

4-Multiple operating force options
