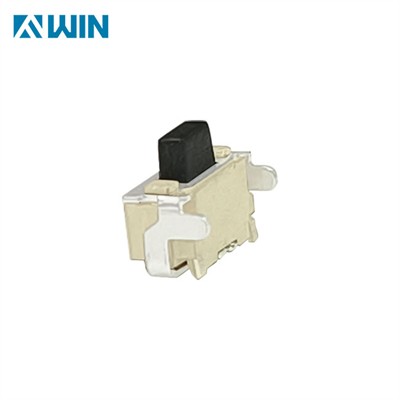

Mini Tactile Switch

As a PCB designer, the selection of switches is one of the most important decisions you’ll make when building user interfaces for electronic devices. The Mini Tactile Switch is a preferred choice for many PCB designs due to its compact size, reliable performance, and ease of integration into a wide variety of applications. Whether you are designing consumer electronics, automotive systems, medical devices, or industrial machinery, this small yet powerful switch offers a range of benefits that make it an ideal component in many designs.

The Mini Tactile Switch is designed for space-constrained applications where precision, low profile, and durability are paramount. Its compact footprint, typically 6mm x 6mm or smaller, makes it an excellent solution when you need a reliable switch without compromising on the size of your PCB. Below, we explore why the Mini Tactile Switch is a top choice for PCB designers, focusing on its technical benefits, features, and wide-ranging applications.

For PCB designers, ease of integration is a key factor when choosing components. The

For PCB designers, ease of integration is a key factor when choosing components. The Mini Tactile Switch is designed for straightforward integration into the PCB, thanks to its through-hole or surface-mount configurations, both of which are widely supported by PCB assembly processes. Surface-mount variants, in particular, are ideal for automated pick-and-place systems, speeding up production times and reducing the risk of assembly errors.

The switch’s simple on/off functionality (usually SPST, or Single Pole Single Throw) also means that you can easily integrate it into circuits without requiring complex wiring or additional components. This simplicity streamlines the design process, helping to keep production costs down.

the Mini Tactile Switch offers a range of benefits that make it an excellent choice for PCB designers. Its compact size allows for efficient use of board space, while its tactile feedback ensures a reliable user experience. The switch’s simple design and high durability make it easy to integrate into a wide variety of applications, from consumer electronics to industrial machinery. Whether you are designing a compact handheld device, an automotive control panel, or a medical instrument, the Mini Tactile Switch provides the precision, durability, and cost-effectiveness you need for a successful design.
