DIP Switch 5 Pole Piano

DIP switch comes from having the same shape and array of terminals found in integrated circuits (dual inline package), thus abbreviated to DIP.

Model: DP5

DP Series is 5 Position Dip Switch. This dip switch offers a variety of positions options. Stable quality and popular in configure computer peripherals industry. Besides, it uses PCB terminal for quick connection and easy assemble. Red and blue color are available.Their name comes from having the same shape and array of terminals found in integrated circuits (dual inline package), thus abbreviated to DIP.

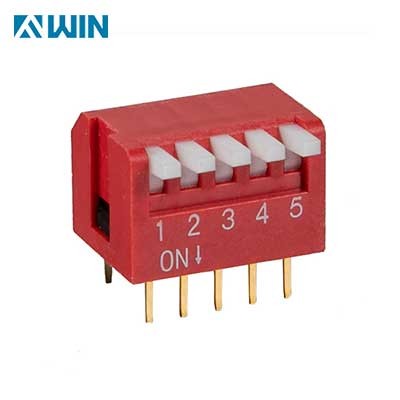

The "DIP Switch 5 Pole Piano" is a type of DIP (Dual In-line Package) switch that features five individual switches in a piano-style design. Each of the five switches operates independently, providing ON or OFF control for different circuit pathways. The "piano" design refers to the horizontal orientation of the actuators, which resemble piano keys, making the switch easy to operate. This type of DIP switch is commonly used for setting configurations, device addressing, and mode selection in a wide variety of electronic systems.

The switch contains five poles, each acting as an independent SPST (Single Pole, Single Throw) switch. Each of the five switches can be turned ON or OFF individually, allowing for 32 (2^5) different combinations of configurations. This provides greater flexibility for controlling multiple functions or settings within a device.

The "piano" style refers to the flat, wide actuators that resemble piano keys. These horizontal switches are easier to toggle with a fingertip or small tool compared to traditional vertical DIP switches, making them more user-friendly, especially in applications that require frequent manual changes to the switch positions.

The "DIP Switch 5 Pole Piano" is a highly versatile and user-friendly component designed for easy manual configuration in a variety of electronic applications. Its five independent switches allow for multiple configuration possibilities, while the piano-style actuators make it simple to toggle each switch with precision. The compact DIP form factor, durability, and reliability make it an essential component in devices requiring manual address selection, mode switching, or configuration changes, especially in applications where frequent adjustments are necessary.
