4 Position DIP Switch

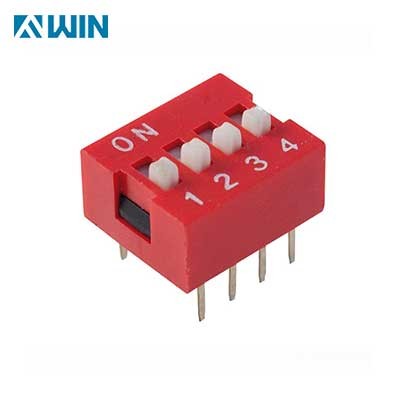

DP Series is 4 Position Dip Switch. This dip switch offers a variety of positions options. Stable quality and popular in configure computer peripherals industry. Besides, it uses PCB terminal for quick connection and easy assemble. Red and blue color are available.Their name comes from having the same shape and array of terminals found in integrated circuits (dual inline package), thus abbreviated to DIP.

The 4 position red DIP (Dual In-line Package) switch is a compact and effective component commonly used in electronic devices for configuration and settings adjustments. This switch allows users to manually select between four distinct options, making it ideal for a variety of applications. Below, we explore its key features, benefits, applications, and selection considerations.

1. Four Position Configuration:

The switch features four distinct positions, enabling users to toggle between different settings or configurations. Each position corresponds to a specific function or option, providing versatility in design.

2. Red Color Coding:

The red color of the switch not only enhances visibility but can also indicate specific functionalities, making it easier for users to identify the switch among other components.

3. Compact Design:

Designed in the standard DIP format, this switch is compact and easily fits into space-constrained applications, allowing for efficient PCB layouts.

4. Easy Integration:

The DIP format is designed for easy integration into printed circuit boards (PCBs), facilitating automated assembly and soldering processes.

5. Mechanical Operation:

Each position is manually operated, providing a tactile response that confirms to users that their action has been registered.

These switches are designed to be manually operated, offering a straightforward way to configure device settings without the need for complex programming or software changes. This is especially useful in applications where configurations need to be easily accessible and adjustable, such as in testing environments or field installations.

When choosing a 4 position red DIP switch, consider the following factors:

• Electrical Ratings: Ensure that the switch can handle the voltage and current specifications required for your application.

• Pole Configuration: Verify that the 4 position switch meets the specific needs of your design, considering the number of selectable options required.

• Mounting Type: Check the physical dimensions and mounting style (typically through-hole) to ensure compatibility with your PCB layout.

• Actuation Force: Assess the required force needed to toggle the switch, as different applications may necessitate varying actuation strengths.

• Environmental Factors: If the switch will be exposed to harsh conditions, consider a model with appropriate sealing and durability features.
