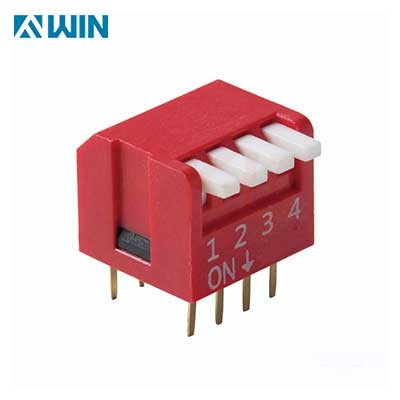

DIP Switch 4 Way Right Angle Piano Type

DIP switch comes from having the same shape and array of terminals found in integrated circuits (dual inline package), thus abbreviated to DIP.


A DIP switch 4-way right angle piano type is a compact, versatile electronic component used for controlling circuits and settings in various devices. It features four individual switches, each with two positions (ON and OFF), arranged in a dual-in-line package (DIP) with a right-angle orientation. The "piano type" refers to the slide-style actuators, resembling the keys of a piano.

  • 4-way: It has four independent switches, each controlling a separate circuit.

  • Right Angle: The switch is designed to be mounted perpendicular to the circuit board, making it ideal for space-saving applications.

  • Piano Type: The switches are operated by sliding actuators, similar to piano keys, offering a tactile and responsive feel.

Key Features:

  • Compact Size: Its small footprint allows for efficient use of space on circuit boards.

  • Easy Mounting: Designed for through-hole mounting on PCBs.

  • Durable Construction: Typically made from robust materials to withstand repeated switching.

Versatile Applications: Used in a wide range of devices, including:

  • Computers: Setting BIOS configurations, controlling peripherals.

  • Industrial Control Panels: Enabling or disabling specific functions.

  • Test Equipment: Selecting test parameters, controlling circuits.

  • Hobbyist Projects: Providing multiple on/off switches in a compact form

SPST Dip Switches are integral components in electronic circuits, allowing for manual control over various settings and configurations. The 4-way right angle piano type takes this functionality to the next level with its innovative design. Positioned at a right angle on the circuit board, this switch optimizes space utilization and enhances ease of access.

The Right Angle Advantage:

The right-angle orientation of the 4-way DIP switch offers distinct advantages in electronic design. By mounting perpendicular to the board, it streamlines the layout and facilitates efficient wiring. This orientation is especially beneficial in compact devices where space is at a premium, allowing for a sleek and organized circuitry arrangement.

Piano-Style Actuators for Precision:

The piano-style actuators of the 4-way Right Angle Dip Switch provide a tactile and responsive interface for users. Resembling the keys of a piano, these slide switches offer a satisfying click and precise control over the circuit settings. This intuitive design enhances user experience and ensures accurate adjustments in various applications.

Applications Across Industries:

From consumer electronics to industrial machinery, the 4-way right angle piano type DIP switch finds its place in a myriad of industries. In computers, it can be utilized for BIOS configurations and peripheral controls. In industrial settings, it enables precise function selection in control panels. Test equipment benefits from its versatility in choosing test parameters, while hobbyists appreciate its compact form for project customization.

Enhancing Circuit Design:

The 4-way PCB mount right angle DIP switch serves as a cornerstone in circuit design, offering flexibility, reliability, and efficiency. Its compact size, right-angle orientation, and piano-style actuators make it an indispensable component in modern electronics. Whether used for configuration, selection, or control, this switch exemplifies precision engineering and innovative design.

In the dynamic world of electronics, the 4-way right angle piano type DIP switch stands out as a versatile and essential component. Its unique design, compact form factor, and intuitive interface make it a valuable addition to any circuitry. From optimizing space utilization to providing precise control, this switch embodies the sophistication and functionality required in today's electronic devices.
