DPDT Momentary Toggle Switch

Toggle switch is a manual operation control switch,it’s design for control the break and connect on the AC or DC current circuit.

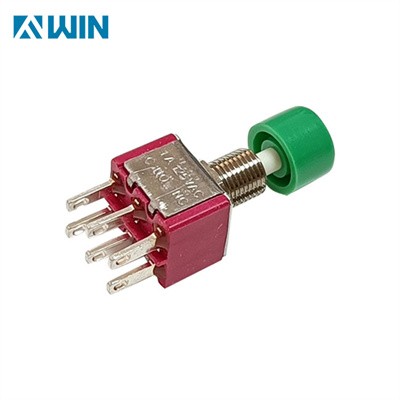

NO-NC 2 Position DPDT Momentary Toggle Switch AC 125VAC/1A green cap button With 6 pins, The mini push switch is used in industrial controlling circuits for controlling in electromagnetic starter, Contactor, Relay and other electric circuits.

It has the advantages of safety, longevity, reliability and excellent design,harmonious in colour,design and function.

A DPDT (Double - Pole, Double - Throw) Momentary Toggle Switch is a highly versatile and useful electrical component. As the name indicates, it has two poles, allowing it to control two separate circuits simultaneously. The "double - throw" feature means it can switch between two different electrical connections for each pole. What sets it apart is the "momentary" aspect. When the switch is actuated, it remains in the new position only as long as pressure is applied. Once released, it returns to its original state.

This type of dpdt on on toggle switch finds applications in a wide range of fields. In industrial settings, it's often used for emergency stop functions in machinery, ensuring immediate halt of operations when needed. In automotive electronics, DPDT momentary toggle switches can control features like horn activation or temporary high - beam headlights. For hobbyists and DIY enthusiasts, they are great for building custom - made electronics projects, such as remote - controlled toys or experimental circuits.

double pole double throw toggle switch are known for their reliability and durability. They are designed to withstand frequent use and harsh environmental conditions. With proper installation and usage, they provide consistent and accurate switching performance, making them an essential part of many electrical systems.


Contact Type: 1COM+2NO+3NC

Voltage: 125VAC/1A,

Hole Diameter: 6mm

Type: Momentary, DPDT, NO NC

Number of Terminal: 6

Material: plastic and metal
