Illuminated Pushbutton With LED

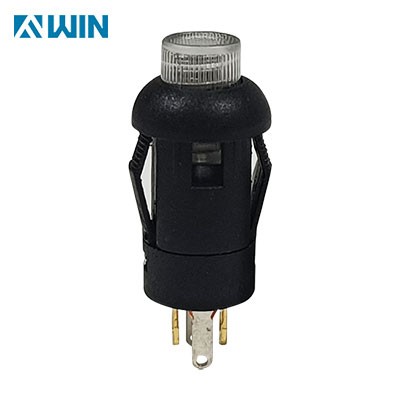

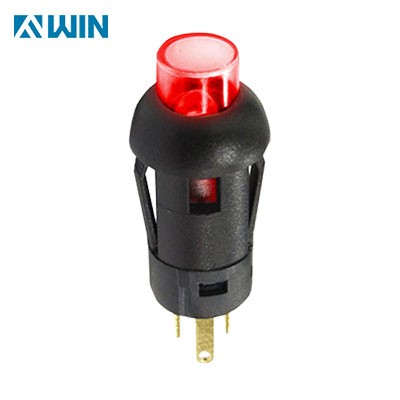

The PS08 series of Illuminated Momentary Miniature Push Button Switch, PCB, SPST, 8mm Cutout, Blue, Green LED, 30V dc;The case and housing is made from high-quality Nylon 6/6 and terminal is made from copper alloy with gold plated material. The total height of a push button switch is 23mm. You can choose from solid black or illuminated water clear actuator. Illuminated colour variants include blue, green, yellow, white and red. If you are looking for dual colour version, we can provide it too.

POLE-POSITION : Momentary Type, SPST with LED

CONTACT RATING : 30V DC,0.1A

CONTACT RESISTANCE : 50mΩ Max,1.5VDC;100mA by Method of Voltage DROP

INSULATION RESISTANCE :100MΩ min,500VDC

DIELECTRIC STRENGTH : 500V AC for 1 Minute

OPERATING FORCE : 250±100gf

OPERATING LIFE : 50,000 cycles

OPERATING TEMPERATURE RANGE : -40°C ~ 85°C

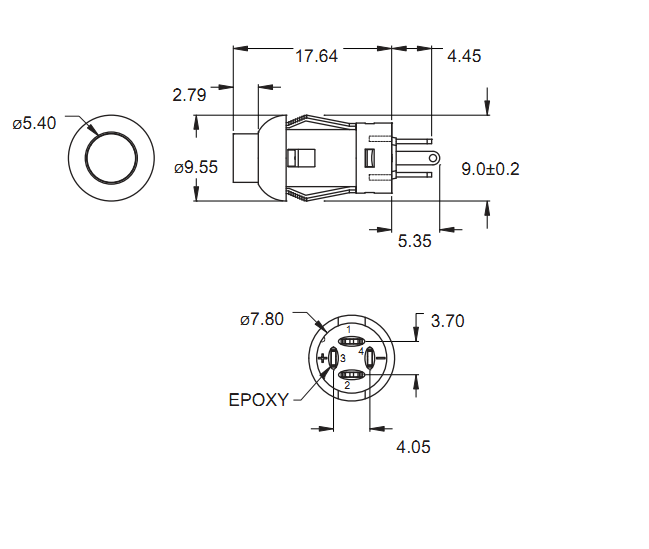

TOTAL TRAVEL : 1.2±0.3mm

MOUTING:Panel Mount

TERMINALS : Copper alloy with gold plated

CUT-OUT SIZE:8.0MM

1, Excellent tactile feel
2, Wide choice of LED Colours options
3, High reliability / long life
4, SPST electrical functions

Established in 2013 HK FVWIN ELECTRONICS have been providing electronics switch manufacture services within the industry for over ten years. Our focus is on providing a quality control switches to our customers and build long term working relationships, our products includes tact switch, push button switch, toggle switch, rocker switch, DIP switch, slide switch and sockets.

Our illuminated led tact switches has widespread applications for audio apparatus, medical instruments,lighting consoles,safe monitoring system,cashier devices,broadcasting system.
