Illuminated Momentary Mini Push Button

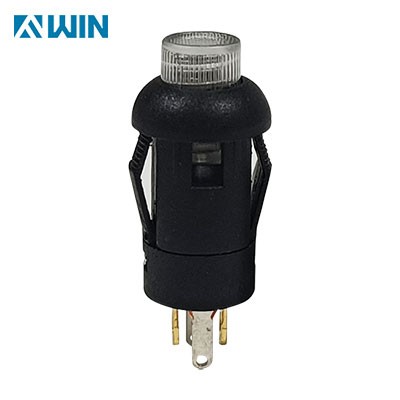

The PS08 series of Illuminated Momentary Miniature Push Button Switch, PCB, SPST, 8mm Cutout, Blue, Green LED, 30V dc;The case and housing is made from high-quality Nylon 6/6 and terminal is made from copper alloy with gold plated material. The total height of a push button switch is 23mm. You can choose from solid black or illuminated water clear actuator. Illuminated colour variants include blue, green, yellow, white and red. If you are looking for dual colour version, we can provide it too.
POLE-POSITION : Momentary Type, SPST with LED
CONTACT RATING : 30V DC,0.1A
CONTACT RESISTANCE : 50mΩ Max,1.5VDC;100mA by Method of Voltage DROP
INSULATION RESISTANCE :100MΩ min,500VDC
DIELECTRIC STRENGTH : 500V AC for 1 Minute
OPERATING FORCE : 250±100gf
OPERATING LIFE : 50,000 cycles
OPERATING TEMPERATURE RANGE : -40°C ~ 85°C
TOTAL TRAVEL : 1.2±0.3mm
TERMINALS : Copper alloy with gold plated
1, Excellent tactile feel
2, Wide choice of LED Colours options
3, High reliability / long life
4, SPST electrical functions
HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.
FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
Our illuminated led tact switches has widespread applications for audio apparatus, medical instruments,lighting consoles,safe monitoring system,cashier devices,broadcasting system.
