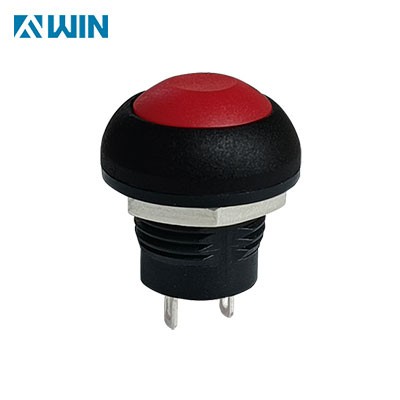

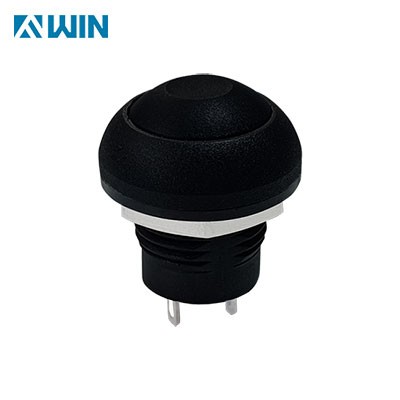

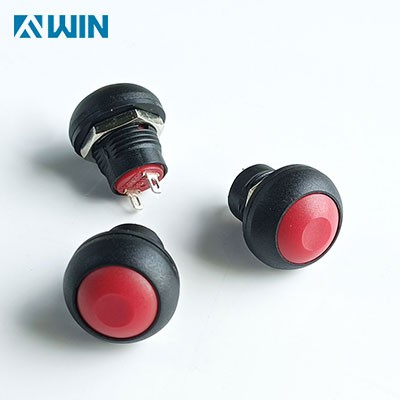

12mm IP67 Rated Momentary Push Button Switch

12mm Waterproof Momentary Push Button for Automotive Horn and Sim Racing Steering Wheel

12mm IP67 waterproof industrial pushbutton switch with SPST-NO contacts, momentary operation, and a round dome button, designed for compact automotive and electronic control applications.

1. Product Description

The 12mm Waterproof Push Button Switch is a compact panel-mount switch designed for equipment that requires reliable manual control and protection against dust and moisture. It features a plastic round dome button, a 12mm mounting diameter, and an IP67-rated sealing design.

With an SPST-NO contact configuration, the switch remains open in its normal position and closes when pressed. Once released, the button automatically returns to its original position and the circuit opens again. This momentary operation makes it suitable for functions that require a short control signal rather than maintaining an ON/OFF state.

The IP67 protection rating provides dust-tight protection and resistance to temporary water immersion under specified testing conditions. This makes the switch suitable for control panels and electronic equipment that may be exposed to moisture or dust.

For automotive applications, this 12mm push button can be used as a horn activation button through a suitable relay or electronic control circuit. It is also suitable for racing simulator steering wheels, where compact buttons are needed for horn functions, menu selection, and other user-defined controls.

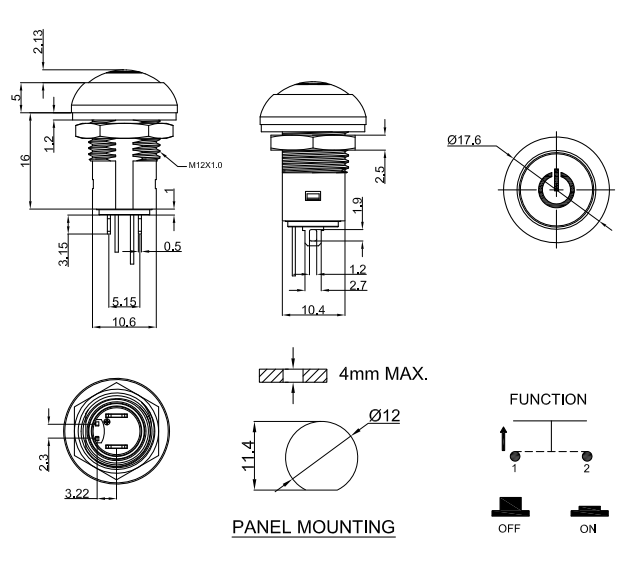

2. Product Specifications

Product NameIndustrial Waterproof Pushbutton Switch
Mounting Size12mm
Button ShapeRound Dome
Protection LevelIP67
Configuration
Momentary
Operation TypeOff-(ON)
Mounting TypePanel Mount
Terminal TypeSolder Lug

3. Product Features & Key Selling Points

1. IP67 Waterproof and Dustproof Protection

The IP67-rated design protects the switch against dust ingress and temporary immersion in water under specified test conditions. It is suitable for equipment where moisture and dust protection are important.

2. Compact 12mm Panel Mount Design

The 12mm mounting size allows installation in compact control panels and limited spaces. It is a practical option for automotive accessories, simulator steering wheels, and small electronic devices.

3. SPST-NO Momentary Contact

The normally open contact closes when the button is pressed and returns to the open position when released. This operation is suitable for momentary control functions such as horn activation and signal input.

4. Round Dome Plastic Button

The rounded dome actuator provides a convenient pressing surface for repeated manual operation. Its plastic construction offers a lightweight solution for electronic equipment and customized control panels.

5. Suitable for Repeated Button Operation

The momentary structure supports applications where users need to activate a function briefly and release the button immediately. It is suitable for frequently operated control interfaces, subject to the specified mechanical and electrical life.

4. Application Areas

The 12mm IP67 Waterproof Push Button Switch is designed for compact control systems and electronic equipment.

1. Automotive Horn Buttons: Used as a manual horn activation button in customized automotive control systems. For higher-current horn circuits, a suitable relay or electronic interface should be used.

2. Racing Simulator Steering Wheels : Installed on simulator steering wheels for horn activation, menu navigation, and other auxiliary control functions.

3. Automotive Accessories : Suitable for auxiliary control panels, customized vehicle electronics, and compact automotive accessories.

4. Electronic Control Equipment : Used as a momentary input button in electronic devices, control boxes, and other compact equipment requiring dust and moisture protection.

5. FAQ

Q1: What does SPST-NO mean on this 12mm push button switch?

SPST-NO means Single Pole Single Throw Normally Open. The circuit closes when the button is pressed and opens again when the button is released.

Q2: Is this 12mm push button switch suitable for outdoor applications?

Its IP67 protection provides dust-tight protection and temporary water immersion resistance. However, suitability for outdoor use also depends on installation, wiring, temperature, UV exposure, and the sealing of the complete equipment enclosure.

Q3: Can this momentary push button switch be used for automotive horns?

Yes. It can serve as a horn control button. For a high-current automotive horn, the switch should normally control a suitable relay or electronic input rather than carry the horn's operating current directly. Check the actual circuit voltage and current before selection.

Q4: Can this switch be installed on a racing simulator steering wheel?

Yes. Its compact 12mm mounting size and momentary operation make it suitable for simulator steering wheel buttons, including horn activation and other auxiliary functions.
