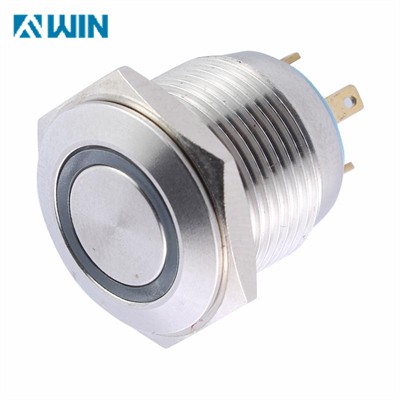

16MM Metal Push Button Switch with LED

16mm metal push button switch with ring LED is a metal button, ring-shaped LED illumination, and a compact panel-mount design.

It designed for self-service terminals, vending machines, information kiosks, lottery machines, and amusement equipment.

The ring LED provides a clear visual indicator around the button. It helps operators identify controls in dimly lit areas and gives equipment designers a simple way to display button status. Available LED colors may include red, green, blue, and white, with different LED voltage options depending on the configuration.

With a standard 16mm panel cut-out and threaded mounting, the switch can be integrated into compact control panels. Its IP67-rated sealing helps protect against dust and temporary water immersion under specified test conditions when correctly installed.

Key Features

1. Ring LED illumination: Provides a visible light ring to help identify button status.

2. Multiple LED options: Red, green, blue, and white colors may be available, depending on the model.

3. Different LED voltages: Options such as 5V, 12V, and 24V can be confirmed when selecting the configuration.

4. IP67 protection: Suitable for applications requiring dust protection and temporary immersion resistance under specified conditions.

5. Two operating modes: Momentary and latching options support different control requirements.

6. 16mm panel cut-out: Threaded mounting supports compact and orderly panel layouts.

7. Head style options: Flat-head and raised-head designs may be available.

8. Flexible wiring options: A pre-wired version may be available to simplify equipment assembly.

Technical Considerations

The exact specifications depend on the selected model. Before ordering, confirm the following details with FVWIN:

Applications

1. Self-Service Terminals

The illuminated ring makes the button easier to identify on vending machines, information kiosks, and other self-service equipment. It can help distinguish frequently used controls and improve visibility in indoor public areas.

2. Lottery and Amusement Machines

The ring LED provides a clear visual feature for user-operated controls. Different LED colors can help distinguish functions when the equipment design supports color-coded operation.

3. Vending Machines

The 16mm mounting size is suitable for compact panel layouts. Momentary operation can be used for trigger inputs, while latching operation may suit functions that need to maintain a selected state.

4. Outdoor Control Equipment

The IP67-rated version can be considered for equipment exposed to dust or temporary immersion. Check the complete enclosure, panel sealing, and installation conditions before using the switch outdoors.

Choosing the Right Configuration

When selecting a 16mm metal push button switch with ring LED, consider how the button will be used and installed.

1. For momentary control: Choose a momentary version when the signal should be active only while the button is pressed.

2. For maintained switching: Choose a latching version when the switch needs to retain its state after operation.

3. For low-voltage LED indication: Match the LED voltage to the available power supply. The LED voltage and switch contact rating are separate specifications.

4. For faster assembly: Consider a pre-wired version if its wire length and termination suit your production process.

5. For panel design: Select a flat or raised head according to the required appearance and operating feel.

About FVWIN

FVWIN manufactures illuminated tact switches, pushbutton switches, toggle switches, sockets and connectors.

With seasoned professionals and modern production technology, we produce quality components meeting industrial standards and provide custom-fit switch and connector solutions.

We prioritize efficient communication and on-time support. Our team is ready to answer your questions and assist with your technical and order enquiries.

We aim to build stable, long-term cooperation with customers. We hope to support your projects with dependable products and services.

FAQ

1. What is the advantage of a ring LED compared with a dot LED?

A ring LED illuminates the area around the button, making the control visually distinct. A dot LED provides a smaller, more subtle indicator at the center. The choice depends on panel design and visibility requirements.

2. Can I choose between momentary and latching operation?

Yes, both options are listed for this product range. Momentary switches return to their normal position when released. Latching switches retain their selected state until operated again. Confirm the required version before ordering.

3.  Does IP67 mean the switch can be used underwater continuously?

No. IP67 generally covers dust protection and temporary immersion under specified test conditions. It does not automatically mean the switch is suitable for continuous underwater use. Follow the product datasheet and installation requirements.

4. How do I select the correct LED voltage?

Match the LED's rated voltage to the equipment's power supply. For example, a 12V LED should be supplied according to its specified 12V rating. Do not select the LED voltage based only on the switch's contact voltage rating
