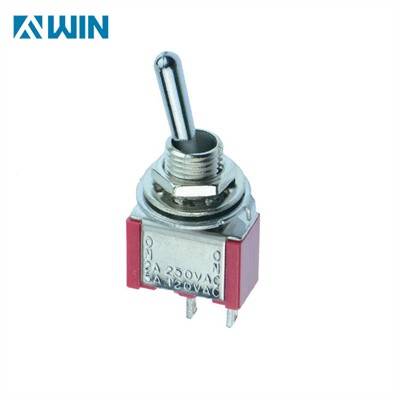

On Off Miniature Toggle Switch

This is cut-out 6.5mm On Off Miniature Toggle Switch that rated at 5A and SPST configuration contact, it is a miniature centre off toggle switches with single pole change over contacts.


The on off toggle switch is a versatile and widely - used electrical component that offers two distinct “on” positions, providing enhanced functionality compared to traditional on - off switches.


Structurally, it typically features a durable housing, often made of materials like plastic or metal, which safeguards the internal contact mechanisms. A toggle lever extends from the housing, allowing users to manually shift between the two on states. Inside, there are sets of metal contacts, usually crafted from highly conductive materials such as copper or brass alloys. When the toggle is moved to one of the on positions, a specific set of contacts closes, completing an electrical circuit and enabling current to flow. Shifting the lever to the other on position breaks the previous connection and closes a different circuit, routing the current through an alternative path.


This type of small toggle switch finds extensive applications across various industries. In electronics projects, it can be used to select between two power sources or different operating modes of a device. For example, in an audio amplifier, one on position might activate a normal gain setting, while the other enables a high - gain mode for more powerful sound output. In automotive systems, 2 way toggle switches are useful for controlling features like auxiliary lights, where each on position can turn on a separate set of lights. Their ability to provide two distinct active states makes them a valuable choice for scenarios requiring flexible electrical control.


1. Sub-miniature size will save the PCB board space

2. ON-OFF,ON-OFF-ON,ON/OFF many configurations options

3. Smooth operation mechanism,reliable function


HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.





Our illuminated led tact switches has widespread applications for audio apparatus, medical instruments,lighting consoles,safe monitoring system,cashier devices,broadcasting system.
