Right Angle Two Way Dip Switch

The right-angle two-way DIP (Dual In-line Package) switch is a widely used component in modern electronics, offering flexibility and reliability for circuit configuration and control. These compact, cost-effective switches provide manual toggling between two states (ON/OFF) and are often used in digital circuits to set user-defined configurations such as device modes, address selections, and debugging options. The "right-angle" design enables unique mounting configurations, optimizing space and usability in compact or densely populated circuit boards.

This comprehensive introduction explores the structure, features, applications, and benefits of right-angle two-way DIP switches, providing an in-depth understanding of their importance in electronic design.

What Is a Right-Angle Two-Way DIP Switch?

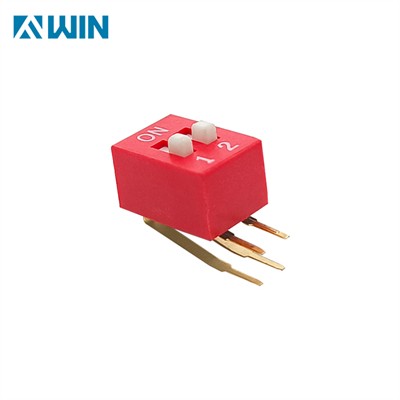

A right-angle two-way DIP switch is a manual electrical switch designed in a rectangular package with two-position toggle options. It is called "right-angle" because its terminals are oriented perpendicular to the body of the switch, allowing for horizontal mounting on printed circuit boards (PCBs). The two-way nature refers to its ON/OFF functionality, making it suitable for binary operations in electronic circuits.

Typically, the switch consists of a small actuator or lever that users can toggle between positions, connecting or disconnecting specific circuit pathways. These switches are often grouped into multiple poles (e.g., 2, 4, 8, or more), allowing designers to configure multiple settings on a single device.

Key Features of Right-Angle Two-Way DIP Switches

1. Right-Angle Configuration:The unique terminal orientation allows for horizontal PCB mounting, making the switch accessible from the side. This design is ideal for devices with limited vertical space or where side-access adjustments are needed.

2. Compact Form Factor:Despite their functionality, right-angle DIP switches are compact, saving valuable PCB real estate.

3. Two-Way Toggle Mechanism:Offers simple ON/OFF control, essential for binary operations like enabling/disabling features or setting logic levels.

4. Multiple Poles:Available in configurations ranging from a single pole to dozens, enabling multiple settings in a single package.

5. Durable Build:Constructed from robust materials such as high-grade plastics and metals, ensuring durability over thousands of toggling cycles.

6. Easy Soldering and Mounting:Compatible with standard PCB soldering techniques, including hand soldering and automated reflow processes.

7. Clear Markings:Often labeled with ON/OFF indicators or numbers, ensuring accurate configurations during setup.

8. Low Contact Resistance:Ensures reliable electrical connectivity with minimal signal loss.

9. Customizable Options:Available in various pin counts, actuation forces, and current ratings to suit specific applications.
