Toggle switch is a manual operation control switch,it’s design for control the break and connect on the AC or DC current circuit.
Mini ON-OFF-ON toggle switches offer a flexible and reliable switching solution for compact circuits and control systems. With three distinct positions — ON in one direction, OFF in the middle, and ON in the opposite direction — these switches allow users to toggle between two separate circuits or functions with a neutral "off" state in between.
This 3-position functionality is ideal for applications where users need to switch between two modes, speeds, or directions while retaining the ability to completely cut off the circuit in the center position. The most common uses include motor reversing, light dimming or mode selection, and audio routing.
Miniature in size but sturdy in construction, these toggle switches are designed for tight spaces without sacrificing durability. Most models are built with metal toggle levers, strong bakelite or nylon housings, and gold or silver-plated contacts to ensure long-lasting performance. Despite their small form factor, they can typically handle currents of 3A–6A at 125VAC or 12VDC, depending on the specification.
3-Position Switching: ON-OFF-ON configuration offers two active outputs with a central off position.
Compact Size: Ideal for applications with limited panel space or small enclosures.
Versatile Use: Great for motor control (e.g., forward-off-reverse), audio switching, lighting options, and robotics.
Durable Build: Metal lever and rugged housing ensure mechanical life of 10,000+ cycles.

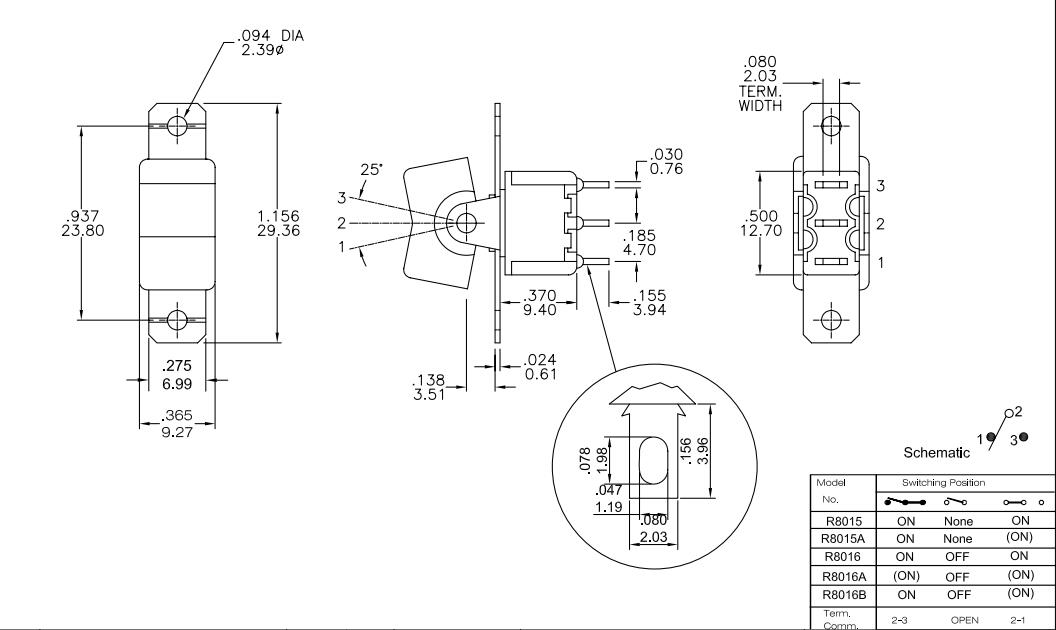

Mounting Flexibility: Typically panel-mounted via a 6mm or 7mm hole with a nut and washer; available with solder lugs or PCB pins
1. Sub-miniature size will save the PCB board space
2. ON-OFF,ON-OFF-ON,ON/OFF many configurations options
3. Smooth operation mechanism,reliable function
