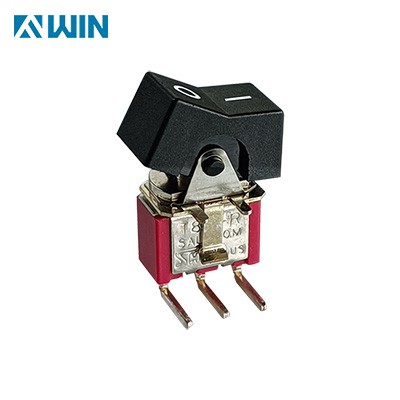

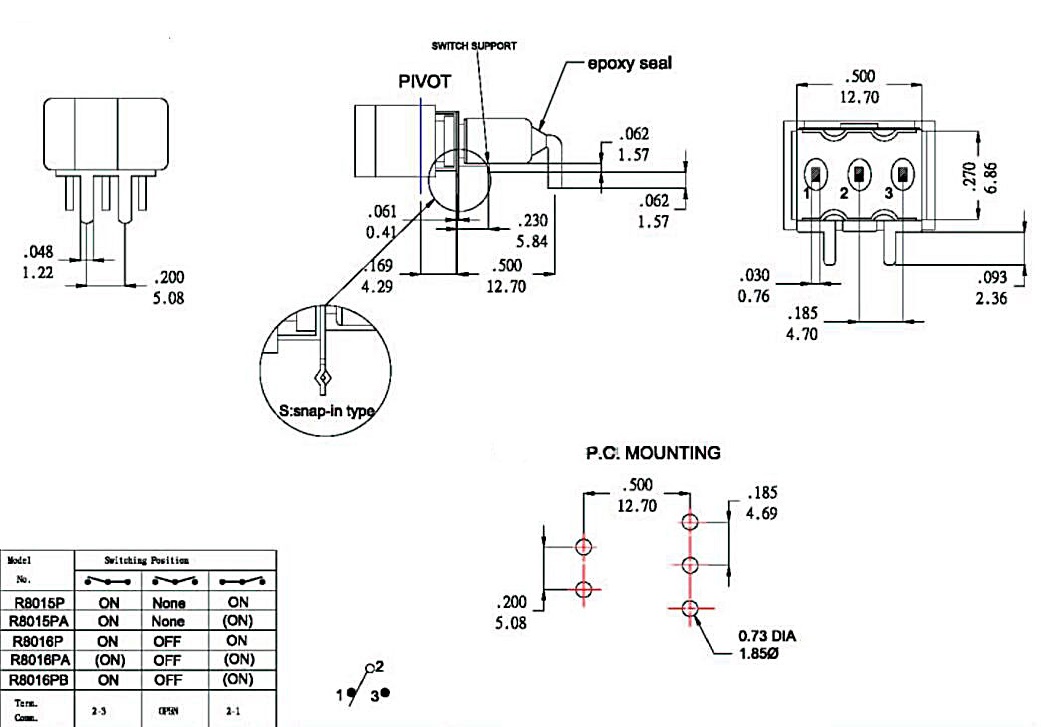

ON-ON Right Angle Toggle Switch

Toggle switch is a manual operation control switch,it’s design for control the break and connect on the AC or DC current circuit.


The small toggle switch is also called as rocker switch,sub-miniature size will save the PCB board occupation space,it’s design for micro current circuit applications.Super antistatic structure,It is composed of carburized bushing and support bracket,Prevent static electric discharge to contact;Locking rod mechanisms are provided as rocker options,6mm diameter bushing for panel sealing installation (threaded optional).

The ON-OFF-ON 3 way toggle switch is a three-position electrical switch that offers intuitive and versatile control in a wide variety of low-voltage and medium-current applications. Designed to toggle between two outputs with a central off position, this switch is ideal for systems requiring direction control, mode switching, or multi-step operation.

When the toggle lever is flipped upward or downward, the switch connects the input to one of two outputs. The middle position disconnects both outputs, functioning as an "off" state. This simple yet powerful design allows one switch to control two separate circuits or devices — without needing complex wiring or programming.

Key Operation:

  • Three Positions: The toggle switch can be moved to the left "On" position, the central "Off" position, or the right "On" position.

  • Two Circuits: Each "On" position connects to a different circuit, providing the flexibility to choose between two different functions or pathways.

  • Toggle Mechanism: The switch operates using a lever that moves between the three stable positions, making or breaking contact with different terminals.

This makes three way toggle switch a favorite for:

  • Reversing the direction of DC motors (forward-off-reverse)

  • Switching between two light levels or brightness modes

  • Selecting between two power sources or batteries

  • Toggling between audio channels or input/output devices

Key Features:

  • 3-Way Toggle Action: Offers clear, mechanical switching between two ON states with a neutral OFF in the center

  • Available in SPDT & DPDT: Choose single or double-pole configurations for simple or dual-circuit control

  • Durable Materials: Often features nickel-plated or stainless steel toggle levers, and flame-retardant housing for reliability

  • Mounting Style: Panel mount with nut and washer for secure installation; typically fits standard 6mm–12mm holes

  • Connection Options: Solder lugs, quick-connect terminals, or PCB pins available

  • Typical Ratings: 3A–6A @ 125VAC or 12VDC depending on model

  • Mechanical Life: 10,000+ cycles for long-term performance




HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
