ON-ON Toggle Switch

The toggle switch is also called as rocker switch,sub-miniature size will save the PCB board occupation space,it’s design for micro current circuit applications.Super antistatic structure,It is composed of carburized bushing and support bracket,Prevent static electric discharge to contact;Locking rod mechanisms are provided as rocker options,6mm diameter bushing for panel sealing installation (threaded optional).

The single pole double throw toggle switch is a versatile and widely - used electrical component that offers two distinct “on” positions, providing enhanced functionality compared to traditional on - off switches.

Structurally, it typically features a durable housing, often made of materials like plastic or metal, which safeguards the internal contact mechanisms. A toggle lever extends from the housing, allowing users to manually shift between the two on states. Inside, there are sets of metal contacts, usually crafted from highly conductive materials such as copper or brass alloys. When the toggle is moved to one of the on positions, a specific set of contacts closes, completing an electrical circuit and enabling current to flow. Shifting the lever to the other on position breaks the previous connection and closes a different circuit, routing the current through an alternative path.

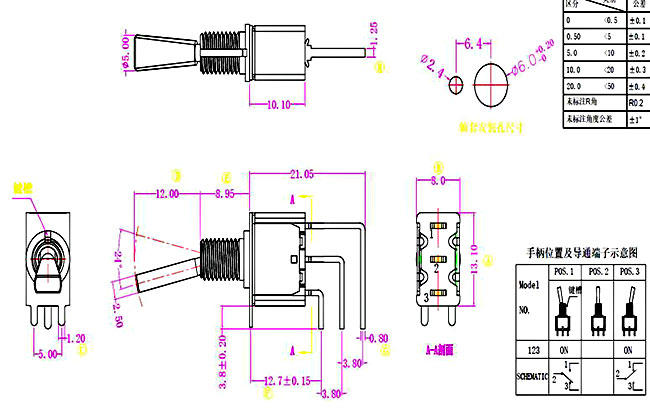

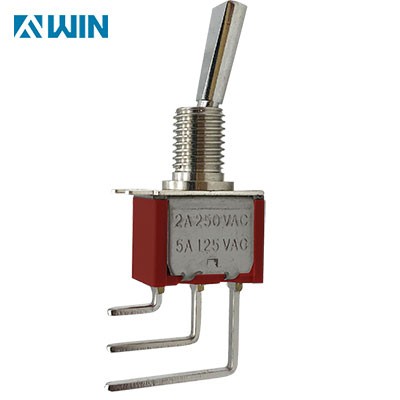

The right angle terminal toggle switch is a compact and efficient switching solution designed for PCBs and panels where space is limited, and layout flexibility is essential. Unlike traditional inline terminal designs, the right angle configuration allows the switch to sit flush against the board surface, enabling low-profile installations and cleaner wiring paths — especially in horizontal PCB orientations.

These switches are commonly used in applications ranging from consumer electronics to industrial control panels. The toggle mechanism offers a simple and intuitive way to switch between positions, while the right angle terminals provide a neat, organized soldering footprint ideal for both automated and manual assembly processes.

Right angle toggle switches are typically available in SPDT (Single Pole, Double Throw) and DPDT (Double Pole, Double Throw) configurations. Popular operating styles include ON-ON, ON-OFF-ON, and momentary (spring-loaded) types, making them suitable for a wide variety of signal routing, mode selection, and power control tasks.

Key Features:

• Right Angle Terminals: Designed for horizontal PCB mounting or edge-mount panel designs.

• Compact Footprint: Perfect for tight spaces in handheld devices, modular panels, and embedded systems.

• Multiple Configurations: Available in SPDT and DPDT, with ON-ON, ON-OFF-ON, and momentary functions.

• Durable Build: Features metal levers, high-quality contacts, and rugged housings for long-lasting performance.

• Easy Installation: Standard 0.1" terminal spacing fits common PCB layouts; quick to solder and secure.
