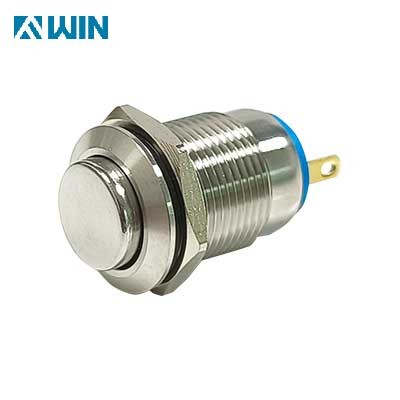

12mm Momentary Metal Push Button Switch

The 12mm momentary metal push button switch is designed for compact control panels and industrial equipment where space is limited and manual control needs to be easy to access. It features a raised metal button head, a standard 12mm mounting hole, and a momentary switching function.

When the button is pressed, the contacts close to activate the connected circuit. Once released, the button returns to its original position and the circuit switches back. This operation makes it suitable for momentary commands such as starting equipment, triggering a control signal, or activating a specific function.

With an IP65 rating, the switch provides protection against dust and water jets under specified test conditions. Its raised head also makes the button easier to locate by touch, including when an operator is wearing gloves. The compact metal design is suitable for control panels used in industrial and small equipment applications.

Key Features

• 12mm mounting size: Suitable for compact panels where installation space is limited.

• Raised metal head: Easier to locate and press, including when wearing work gloves.

• Momentary operation: The switch returns to its original position when released.

• IP65 protection: Helps protect against dust and water jets when correctly installed.

• Metal construction: Provides a durable button surface for regular manual operation.

• Panel control applications: Suitable for momentary triggering in industrial controls and compact equipment.

Technical Specifications

Please confirm the required current rating, contact configuration, terminal or wiring option, and panel thickness with FVWIN before placing an order.

Typical Applications

The MS12 12mm momentary metal push button switch can be used in applications that require a compact, manually operated control:

• Industrial control equipment: Momentary input for equipment operation and control signals.

• Compact control panels: A space-saving button option for small enclosures and operator interfaces.

• Small machinery: Manual triggering of selected functions.

• Outdoor equipment panels: Suitable for applications requiring IP65-rated protection when installed correctly and used within the specified conditions.

When selecting a switch for an outdoor installation, consider not only the IP rating but also the panel seal, mounting method, wiring entry, and exposure to weather. IP65 does not mean the switch is suitable for immersion in water.

Why Choose FVWIN?

FVWIN manufactures electronic switches and connectors for equipment manufacturers and B2B customers. The product range includes metal push button switches, illuminated push buttons, tact switches, DIP switches, and other electronic components.

For the MS12, buyers can confirm the key requirements before ordering, including mounting dimensions, momentary operation, rated voltage, protection rating, and packaging. This helps purchasing teams and engineers check compatibility with their control panel design and assembly process.

FVWIN also supports OEM and ODM requirements. For projects involving multiple switch sizes or different control panel designs, buyers can discuss product specifications, samples, and order arrangements with the team before confirming production.

Ordering Information

• Model: MS12

• MOQ: 100 pcs

• Packaging: 100 pcs per bag with foam board packaging

• Lead time: 10–15 working days

For a quotation, provide the required quantity, application, operating conditions, and any additional electrical or wiring requirements. If the switch will be installed outdoors, include the expected exposure conditions so the protection requirements can be checked.

FAQ

1. What is the difference between a momentary and a latching metal push button switch?

A momentary switch operates only while the button is pressed and returns to its original position when released. A latching switch typically remains in its changed state after being pressed until it is operated again. The MS12 described here is a momentary model.

2. Is this 12mm metal push button switch waterproof?

The MS12 is specified as IP65-rated. This rating provides protection against dust ingress and water jets under defined test conditions. It is not designed to indicate suitability for underwater use. Correct panel installation and sealing are also important.

3. Can the MS12 be installed in any 12mm panel opening?

The switch is specified for a 12mm mounting hole, but buyers should verify the actual panel cut-out tolerance, panel thickness, and mounting clearance against the product drawing before production. This helps avoid installation issues during assembly.
