How does a DIP switch work

A DIP (Dual In-line Package) switch is a manually operated, multi-position electrical switch assembly that facilitates non-volatile binary configuration of electronic circuits. Its operation hinges on straightforward mechanical actuation to open or close individual electrical pathways, effectively converting physical positions into digital signals that the circuit can understand and process.

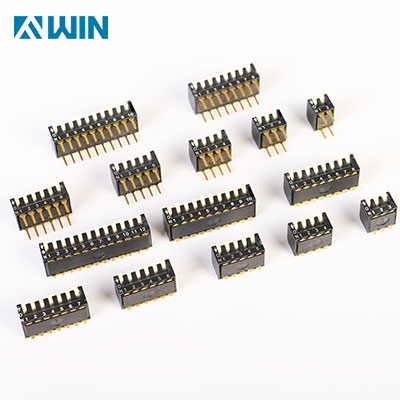

Fundamentally, a DIP switch comprises three essential components: a robust housing (usually made of plastic, designed with insulation and heat resistance ratings), multiple independent switch sections (ranging from 1 to 12 or more per package), and dual rows of pins for printed circuit board (PCB) connection. Each switch section—commonly available in slide, toggle, or rocker designs—functions as a self-contained on/off switch, featuring two stable states: "closed" (conductive) and "open" (non-conductive).

When a user manipulates a switch section—for instance, sliding a tab to the "On" position—the internal metal contacts of the switch (typically constructed from brass or silver-plated materials to minimize resistance) come into physical contact. This creates a closed electrical path between two corresponding pins. Conversely, in the "Off" position, the contacts separate, interrupting the electrical pathway. Notably, the switch retains its position without requiring power (non-volatile), ensuring that the configured settings remain intact even when the device is powered off.

Electronically, DIP switches interface with a circuit (such as a microcontroller or logic gate) by connecting each switch section to a signal pin and a reference point (either ground or power). The circuit interprets the state of each section as a binary value: "closed" corresponds to logic 1 (high voltage, e.g., 5V), while "open" corresponds to logic 0 (low voltage, e.g., 0V). Multiple switch sections work in tandem to form a binary code. For example, a DIP switch with 3 sections can be set to 8 (2³) distinct configurations (such as 000, 001, 010), which can be used to define addresses, operating modes, or various parameters.

This design offers several reliability advantages. Since no software or continuous power supply is needed to maintain the settings, DIP switches are well-suited for applications where stability or compatibility with legacy systems is crucial. Unlike software-configurable alternatives, their mechanical operation eliminates the risk of firmware errors. Additionally, their compact DIP package adheres to standard PCB layouts, streamlining the integration process in industrial, consumer, and embedded electronics applications.
