Introduction to Broadcast Illuminated Buttons

Broadcast illuminated buttons are a crucial element in the control systems used by radio and television studios, live production environments, and other media-related settings;: Enhancing Control and Visual Feedback in Broadcasting. These buttons are not just functional—they also provide essential visual cues that help operators manage multiple tasks simultaneously, ensuring smooth operation and seamless communication in high-pressure environments. Whether it's a control button on a video switcher, a soundboard, or an intercom system, broadcast illuminated buttons are designed to be highly visible, intuitive, and durable, making them indispensable in professional broadcasting.


What is a Broadcast Illuminated Button?

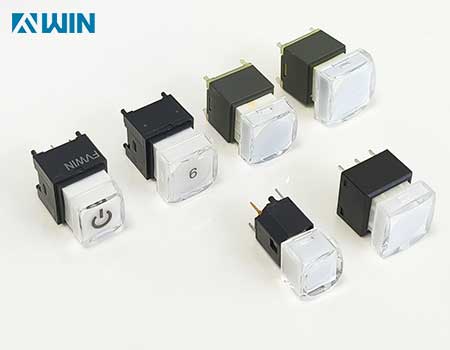

At its core, a broadcast illuminated button is a tactile switch equipped with an integrated light source, typically an LED, that illuminates the button’s surface. The button's illumination can vary in terms of color and intensity, allowing for various visual signals depending on the system's requirements. These buttons are often used in broadcasting control panels and are activated by pressing them, offering both physical and visual feedback. They combine two primary functions: acting as a standard push-button for control and as a visual indicator to convey the button’s status (e.g., active, idle, or in standby mode).

The illumination may serve a variety of purposes depending on the button's role within the broader broadcasting system:

  • Status Indicators: They show the operator whether a particular function or equipment is on, off, active, or in standby mode.

  • Alerts: They can indicate critical status changes, errors, or warnings, such as equipment failure, system overload, or a need for immediate attention.

  • Feedback for Interaction: They give operators visual feedback on their actions, confirming that their input has been received and that the appropriate function is being executed.

Key Features of Broadcast Illuminated Buttons

1. Clear Visual Feedback: The most prominent feature of broadcast illuminated buttons is their ability to provide visual feedback. Whether a button lights up in red, green, yellow, or any other color, the illumination helps to convey the button's current state without the operator needing to look at any other display or interface. This is crucial in fast-paced, live broadcasting environments where decisions need to be made quickly and without hesitation.

2. Color Customization: Many broadcast illuminated buttons are designed with customizable LED colors, offering users the flexibility to program specific color codes to represent different functions or statuses. For example, a red button may indicate an active or "on" state, a green button might show a standby or idle status, and a yellow button could signal a warning or alert. The ability to customize colors allows for better organization, reduces human error, and improves user interface design.

3. Tactile Feedback: These buttons are also known for their tactile feel, which provides an added layer of interaction. Operators can feel a slight resistance or "click" when pressing the button, giving them confirmation that the action has been successfully registered. This tactile feedback is important because it minimizes the chances of accidental presses and helps operators confidently perform their tasks.

4. Durability and Reliability: In broadcasting environments, equipment must be able to withstand constant use, varying temperatures, and other harsh conditions. Broadcast illuminated buttons are engineered for high durability, with robust materials such as metal or high-grade plastic used to construct the button and its housing. This ensures they remain functional even after thousands of presses, which is a common scenario in broadcast studios.

5. Ease of Integration: Broadcast illuminated buttons are designed to be integrated seamlessly into broadcasting equipment, control panels, and consoles. They can be embedded in custom control layouts and are often designed to meet the specific needs of a given production environment. Many buttons are also designed for easy installation and replacement, ensuring minimal downtime during maintenance.

6. Ergonomic Design: These buttons are designed with the user in mind, ensuring ease of use in high-pressure environments. Their size, shape, and positioning allow for easy operation, even by operators who are working under tight time constraints. The design typically incorporates a user-friendly interface with buttons that are large enough to be pressed quickly but small enough to maintain an organized control panel.

Applications in Broadcasting

Broadcast illuminated buttons are utilized in a wide range of applications within the broadcasting industry. They are an integral part of many systems that require precise control and constant feedback. Below are some of the most common areas where broadcast illuminated buttons are used:

1. Control Rooms and Studios

In radio and television control rooms, the rapid management of different devices—such as audio mixers, video switchers, and lighting controls—requires a robust system of visual feedback. Broadcast illuminated buttons are often used for:

  • Audio Control: Operators use these buttons to control microphones, audio levels, and various sound mixing elements. The illumination helps indicate whether a microphone is active or muted, and it provides visual feedback on audio channel status.

  • Video Switching: In live video production, these buttons help switch between cameras, adjust video effects, and manage streaming and recording settings. A button might illuminate green when a particular camera feed is live, or red when the camera is recording.

  • Lighting Control: Control panels for lighting in a studio can use illuminated buttons to indicate which lighting rigs are currently active, ensuring that lighting changes can be made quickly and accurately.

2. Live Event Production

Live events often require highly specialized and fast-paced control systems. Broadcast illuminated buttons are used in environments like concerts, sports events, and news production to trigger specific actions, such as:

  • Cueing Talent: Illuminated buttons are often used by technicians to cue talent (e.g., signal a performer to enter or exit the stage).

  • Broadcasting Alerts: In live sports, production teams may use illuminated buttons to indicate changes in camera angles, graphics, or to alert technical staff about problems with the broadcast signal.

3. Switching and Routing Systems

Broadcast illuminated buttons are also found in switching and routing systems, where their use ensures that the right signals are sent to the right locations. These systems can handle audio, video, or data streams and require reliable and instant feedback to ensure smooth operation. The buttons provide:

  • Visual Confirmation: Operators get immediate feedback on which channels or signals are routed where, ensuring that no mix-ups occur.

  • Function Monitoring: Buttons can indicate whether a signal path is open, closed, or active, which is especially useful for monitoring multiple sources in real time.

4. Broadcast Communication Systems

In intercom systems used in broadcasting, illuminated buttons play a vital role in facilitating communication among various team members. Whether it's a call button, microphone activation, or status update, illuminated buttons help operators track communication flows and ensure that messages are delivered without confusion. These systems typically use illuminated buttons to indicate whether a channel is active or waiting for input.


Broadcast illuminated buttons are a foundational technology in the broadcasting industry. Their ability to provide clear, immediate visual and tactile feedback allows operators to maintain efficient control over complex systems while ensuring high operational accuracy. Their robust design, customizable features, and diverse range of applications make them indispensable for any professional broadcasting environment, helping to streamline production workflows, improve communication, and reduce errors.

Whether in a fast-paced control room, live event production, or an intercom system, broadcast illuminated buttons are an essential part of the tools that keep broadcasting running smoothly. As technology continues to advance, the role of illuminated buttons will likely evolve further, incorporating new features and capabilities to meet the growing demands of the industry. However, their fundamental purpose—providing intuitive control with immediate visual and tactile feedback—will always remain at the heart of their design
