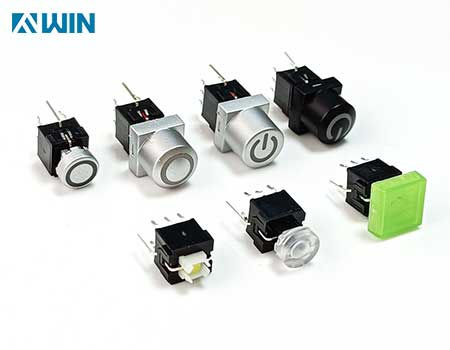

7.5*8.5mm Latching illuminated tact switch

The specifications "7.5*8.5mm latching illuminated tact switch" provide information about the size, function, and features of the switch. Let's break down the key elements:

Size: The dimensions are specified as 7.5mm in width and 8.5mm in length. These measurements refer to the physical size of the switch, which is essential for determining its compatibility with the intended application or PCB layout.

Latching Mechanism: The term "latching" indicates that the switch has a toggle or on/off mechanism. Once pressed, it maintains its state until pressed again to toggle to the opposite state. Latching switches are commonly used for applications where the user wants to set and maintain a specific mode or status.

Illumination:The switch is described as "illuminated," which means it includes a built-in light source, typically an LED. The illumination can serve as a visual indicator for the switch's status, making it useful in applications where the user needs to know whether the switch is in the "on" or "off" position.

Application: Latching illuminated tact switches are suitable for various applications, including control panels, consumer electronics, and other devices where users need to toggle between different states and receive visual feedback about the switch's status.

Mounting Type: The mounting type is not explicitly mentioned in the provided information. Switches may be designed for surface mounting (SMT) or through-hole mounting, depending on the application and design requirements.

Color Options: The illumination may come in different colors, such as red, green, blue, or multicolor options. The color choice can be significant for indicating different states or functions.

Voltage and Current Ratings: Electrical specifications, such as voltage and current ratings, are crucial for ensuring proper compatibility with the electrical system in which the switch will be used.

Termination Type: The termination type specifies how the switch is connected to the circuit. It could have solder terminals for PCB mounting or other types of terminations.

Operating Force: The operating force is the force required to actuate the switch. Tactile switches often come in various operating force options, allowing designers to choose the right feel for the application.

To obtain detailed and accurate information about this specific switch, it is recommended to refer to the datasheet provided by the manufacturer. The datasheet will contain precise specifications, electrical characteristics, and usage guidelines for this particular model.
