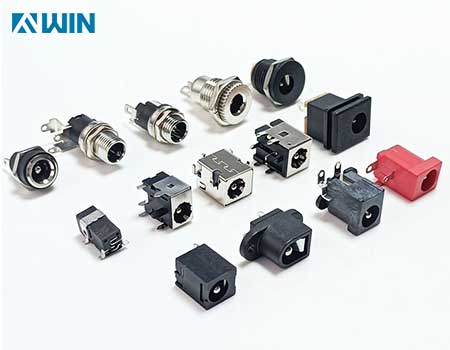

What is the 2.5 mm dc power jack?

The specification of a 2.5mm DC power jack refers to the electrical and physical characteristics of the jack. Here are the key specifications typically associated with a 2.5mm DC power jack:

1.Center Pin Diameter:

The "2.5mm" specification refers to the diameter of the center pin of the DC power jack. This is a critical dimension as it determines the compatibility with the corresponding male plug or connector.

2.Voltage Rating:

The DC power jack will have a maximum voltage rating, indicating the highest voltage it can safely handle. Common voltage ratings for DC power jacks are 12V or 24V, but this can vary depending on the specific design and application.

3.Current Rating:

The current rating specifies the maximum current that the DC power jack can handle without overheating or causing damage. Common current ratings are often in the range of 1A to 5A, but this can vary.

4.Polarity:

Some DC power jacks are polarized, meaning they have a specific positive (+) and negative (-) terminal. It's important to ensure correct polarity alignment with the device or circuit it is connected to.

5.Mounting Type:

DC power jacks can come in different mounting types. For instance, some are designed for through-hole mounting on a printed circuit board (PCB), while others may be panel-mounted or chassis-mounted.

6.Material:

The material used in the construction of the DC power jack affects its durability and conductivity. Common materials include plastic and metal components.

7.Termination Type:

The termination type refers to how the wires are connected to the DC power jack. It could be solder terminals for PCB mounting or wire leads for direct wiring.

8.Operating Temperature:

The operating temperature range indicates the temperatures within which the DC power jack is designed to operate reliably. This information is important for applications exposed to extreme temperatures.

9.Durability and Lifecycle:

Specifications may include information about the durability of the jack, often measured in insertion/removal cycles. This is particularly relevant for jacks that may undergo frequent plug and unplug actions.

10.Panel Mounting Dimensions:

For panel-mounted jacks, the dimensions and specifications for the mounting hole and panel cutout are crucial for proper integration.

11. Insulation Resistance:

Insulation resistance is a measure of how effectively the jack isolates the electrical conductors. Higher insulation resistance values are generally desirable.

It's important to note that specific products or models may have variations in these specifications. Therefore, consulting the datasheet or product documentation provided by the manufacturer is essential for accurate and detailed information.
