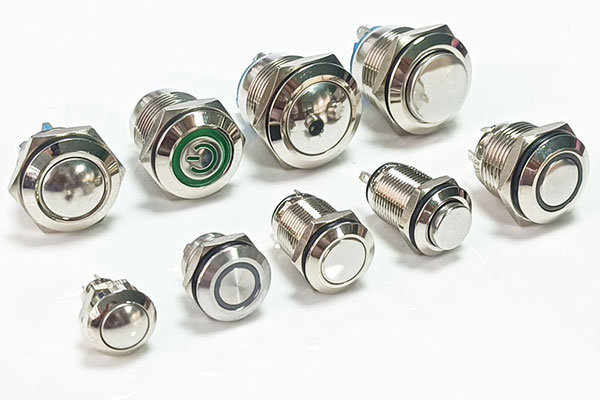

A Guide to Metal Push Button Switches

Metal push button switches are essential components in many electronic and mechanical systems, offering a durable and reliable interface for user input. This guide provides an overview of their types, features, and applications.

Types of Metal Push Button Switches

1. Momentary Switches: These switches are activated only when pressed and return to their default state once released. Commonly used in applications like doorbells and keyboards.

2. Maintained (Latching) Switches: These switches stay in one state until pressed again, toggling between on and off states. They are often used in power switches for devices.

3. Illuminated Switches: Equipped with built-in LEDs, these switches provide visual feedback, indicating the switch status. They are used in applications where visibility is crucial, such as control panels and dashboards.

4. Anti-Vandal Switches: Designed to withstand harsh environments and physical abuse, these switches are often used in public kiosks, elevators, and industrial settings.

Key Features

1. Durability: Metal construction (often stainless steel or aluminum) ensures longevity and resistance to wear, making these switches suitable for high-usage applications.

2. Aesthetics: Metal push button switches offer a sleek, professional look, enhancing the design of the equipment they are used in.

3. Variety of Sizes and Shapes: Available in different diameters, profiles, and mounting styles, metal push button switches can fit into diverse applications, from compact electronics to large industrial machinery.

4. Sealing Options: Many metal push buttons come with IP ratings (e.g., IP67), ensuring protection against dust and water ingress, suitable for outdoor and harsh environments.

5. Electrical Ratings: These switches are available in various electrical ratings to handle different current and voltage requirements, ensuring compatibility with a wide range of devices and systems.

Applications

1. Industrial Equipment: Used in control panels, machinery, and automation systems due to their robustness and reliability.

2. Consumer Electronics: Found in appliances, audio equipment, and personal gadgets, providing a user-friendly interface.

3. Automotive and Marine: Ideal for dashboards, control consoles, and other applications requiring durable, waterproof switches.

4. Public Interfaces: Anti-vandal switches are used in public access points, such as ticket machines, ATMs, and elevators, to ensure longevity despite frequent use and potential misuse.

5. Medical Devices: Their reliability and durability make them suitable for critical applications in medical equipment and devices.

Selection Considerations

1. Environment: Choose switches with appropriate IP ratings for outdoor or harsh environments.

2. Electrical Requirements: Ensure the switch’s voltage and current ratings match the application needs.

3. Mounting Style: Select the appropriate mounting style (panel mount, PCB mount, etc.) based on the design requirements.

4. Aesthetic and Ergonomic Factors: Consider the design and user experience, especially for consumer-facing applications.

Metal push button switches are versatile, durable components essential for a wide range of applications. Understanding their types, features, and selection criteria ensures optimal performance and reliability in your projects. Whether for industrial control, consumer electronics, or public interfaces, there is a metal push button switch to meet your specific needs.
