16mm Thread SPST Momentary Push Button Switch

16mm Thread SPST momentary push button switch with 2 pin and rated at 3A 250VAC/6A 125VAC, it has round shape, this is momentary push button switch without any LED indicators, it has black plastic body,there has nut and joint ring for matching.

This red round push button switch is normally open and The No lock Self Reset OFF/ON push button switch is suitable for 16mm diameter mounting hole.

, when you push the button they will momently connect until the button is released.



1. NO (SPST) contact type, red round head, momentary action, 16mm panel cutout diameter.

2. Button momentary when pressed, automatic reset

3. Colorful button is available

4. Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits, such as bus button.



Model: PB02Product Type: Self Reset Push Button SwitchContact Structure: Normally Open (NO)
Rating:125V 6A / AC, 250V 3A / ACContact Resistance: 0.01 (Ω)Insulation Resistance: 100 (MΩ)

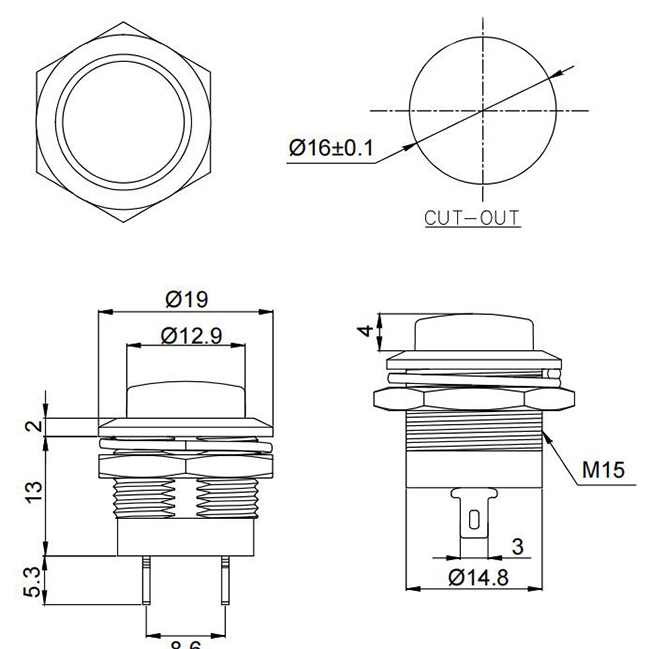

Thread Diameter: 16mmWorking Life: Apprex.100000 TimesMount thread : m16x10mm
Pin Number: 2Button DIA : 13 mmHeight : 20 mm

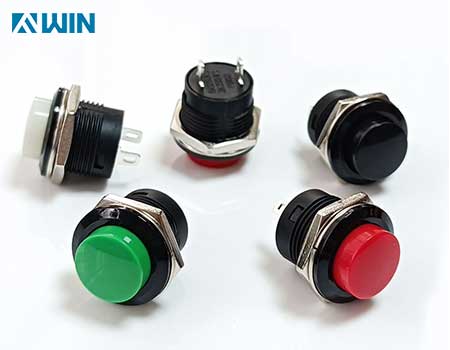

Button color: red, black, white, yellow, green
