TS20 Series Right Angle Illuminated Tact Switch

TS20 series is a right angle illuminated tact switch,it is a through hole mounting,the 90 degree led tact switch has multiple caps and custom built legends selections,there also has several LED colors and bi-colour choices. It has a range application for servers and telecom equipment set-top box.

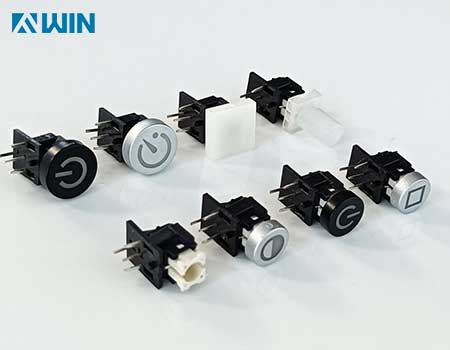

TS20 series illuminated tactile switch is a side button with LED tact button, which is derived from TS9 series 6x6x9mm PCB mounted illuminated button, TS9 series is vertical through-hole operation plug-in type led tactile momentary switch, TS20 series is side button horizontal operation button, TS20 series can be compatible with all TS9 series’ key caps, this 90 - degree momentary illuminated tactile button has a variety of single color and dual color LED lights can choose, the key cap has a square 12 mm / 7.5 mm / 10 mm / 12.8 mm size is optional, circle is 7.5 mm / 8.0 mm / 10.0 mm / 12.8 mm can choose, we also support customized design; Side actuator with led tact switch button is widely used in server peripheral products, its own installation mode is suitable for the special requirements of products, and can save PCB installation space.

Right Angle Illuminated led Tact Switch

The TS20 Series Right Angle Illuminated Tact Switch is a specialized switch designed to provide tactile feedback and integrated illumination in applications where space efficiency and clear visual cues are essential. The purpose of this switch is to combine functionality, ease of use, and compact design, particularly for systems that require user interaction with both physical feedback (tactile) and visual feedback (LED illumination). It is widely used in consumer electronics, industrial controls, and other electronic devices where both visual and physical indications are crucial for proper operation.

1. Tactile Feedback for User Interaction

The TS20 Series offers tactile feedback, meaning users can feel a "click" when they press the button. This is important for user interface design because it assures the user that their input has been successfully registered. This tactile feedback is particularly useful in applications where users may need to operate the switch repeatedly or in situations where precise control is required, such as in control panels, handheld devices, or remote controls.

The "click" sensation produced by the switch provides a physical confirmation of the switch's activation, reducing the risk of accidental mispresses and improving the overall user experience. It’s especially beneficial in situations where users are operating devices in noisy environments or without looking at the switch itself, ensuring that the switch has been engaged correctly.

2. Illuminated Feedback for Clear Status Indication

The integrated LED illumination is a key feature of the TS20 Series, providing visual feedback in addition to the tactile response. This makes the switch ideal for applications where status indication is important—especially in low-light conditions, or where the user needs to immediately discern whether a device or system is powered on, off, or in a particular state.

The LED in the switch lights up when the switch is pressed, offering a clear visual cue. For example:

  • Green LED might indicate an “on” or “active” state.

  • Red LED might indicate an “off” or “inactive” state.

  • Other colors (e.g., blue or yellow) could signal specific operational states or errors, depending on the application.

The LED can also be used for troubleshooting or to highlight critical system states, making it an effective tool in both consumer and industrial applications. It ensures that users can easily see the switch's status from a distance, which is particularly valuable in control panels or industrial machinery, where a quick visual check is needed to verify the system’s condition.

3. Right Angle Mounting for Space Efficiency

The right-angle mounting design of the TS20 Series makes it particularly useful for applications where vertical space is limited or where the switch needs to be mounted along the edge of a printed circuit board (PCB). This mounting orientation is ideal for compact electronic devices, consumer electronics, or industrial control panels where a horizontal layout is needed.

The right-angle configuration allows the switch to be easily integrated into systems where traditional vertically-mounted switches would be difficult to use. This orientation also makes the switch a good choice for designs where components are stacked or arranged in a tight space, allowing for efficient use of the PCB area.

4. Durability and Reliability

The TS20 Series Right Angle Illuminated Tact Switch is designed for long-term reliability. It is typically rated for 50,000 to 1,000,000 cycles of operation, making it suitable for high-use applications. Whether in handheld devices, industrial equipment, or consumer electronics, the switch is engineered to withstand repetitive use without failure, ensuring that it performs consistently over time.

The TS20 Series Right Angle Illuminated Tact Switch is designed to provide tactile and visual feedback in space-constrained environments, making it an ideal solution for a wide range of applications. Its key features, including the right-angle mounting, integrated LED illumination, and durable construction, make it suitable for use in consumer electronics, industrial controls, medical equipment, automotive applications, and more. By combining clear visual indication with tactile confirmation, the TS20 Series enhances user experience, ensuring both efficient operation and easy system monitoring. Whether used in high-traffic consumer devices or mission-critical industrial equipment, the TS20 Series offers a reliable, space-efficient, and user-friendly solution for modern electronic systems.
