Illuminated Right Angle Tactile Switch Features

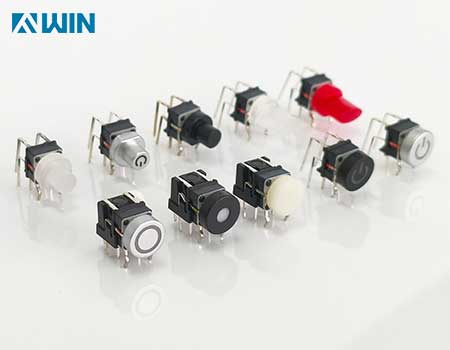

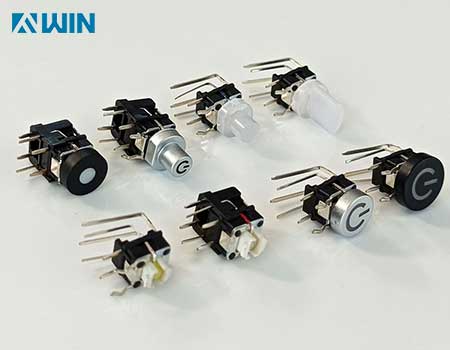

This right angle illuminated tact switches has through-hole termination and LED color offerings of blue, red green and yellow. It is manufactured with gold plated contacts for high reliability switching, has a sharp, tactile response;Illuminated right-angle tactile switches are ideal for applications where space is limited, and both tactile and visual feedback are required. Their compact size, reliable performance, and environmental resistance make them a popular choice in various industries, from consumer electronics to industrial machinery.

An Illuminated Right Angle Tactile Switch combines the tactile feedback of a traditional pushbutton switch with integrated LED illumination, offering both physical and visual cues for user interaction. The right-angle orientation of the switch allows for efficient use of space, particularly in applications with limited vertical clearance. Below are the key features of these switches:

1. Right-Angle Mounting

• Orientation: The switch is designed to mount at a 90-degree angle to the PCB, making it ideal for applications where vertical space is limited or where horizontal alignment is preferred (e.g., in thin devices or control panels).

• Space Efficiency: This design allows the switch to fit in compact spaces and is particularly useful in applications where the switch needs to be located along the edge of a PCB or in tight, confined spaces.

2. Tactile Feedback

• Positive Click: Illuminated right-angle tactile switches provide tactile feedback (a noticeable “click”) when pressed, ensuring users know that the switch has been actuated. This feature is crucial for providing a satisfying user experience in both mechanical and electronic devices.

• Low Actuation Force: Many tactile switches offer a low actuation force (typically between 100g and 300g), ensuring easy and comfortable pressing while preventing accidental presses.

3. Integrated LED Illumination

• Visual Feedback: These switches have built-in LEDs that illuminate when the switch is activated, providing visual feedback in addition to tactile feedback. This is especially useful for status indication in low-light environments or applications that require clear on/off signals.

• LED Colors: Available in multiple colors (such as red, green, blue, yellow, and white) to indicate different statuses. Some models even offer RGB LEDs for multi-color functionality.

• Forward Voltage: The LED typically operates at 2V to 3.2V (depending on the color), with a current-limiting resistor to control the current and prevent LED damage.

4. Compact Design

• Small Profile: These switches are typically compact, with dimensions ranging from 6mm to 12mm, making them suitable for space-constrained applications.

• Low Height: They feature a low-profile design that minimizes height, allowing the switch to fit into slim or narrow enclosures while still providing tactile and visual feedback.
